Iscar
5590650

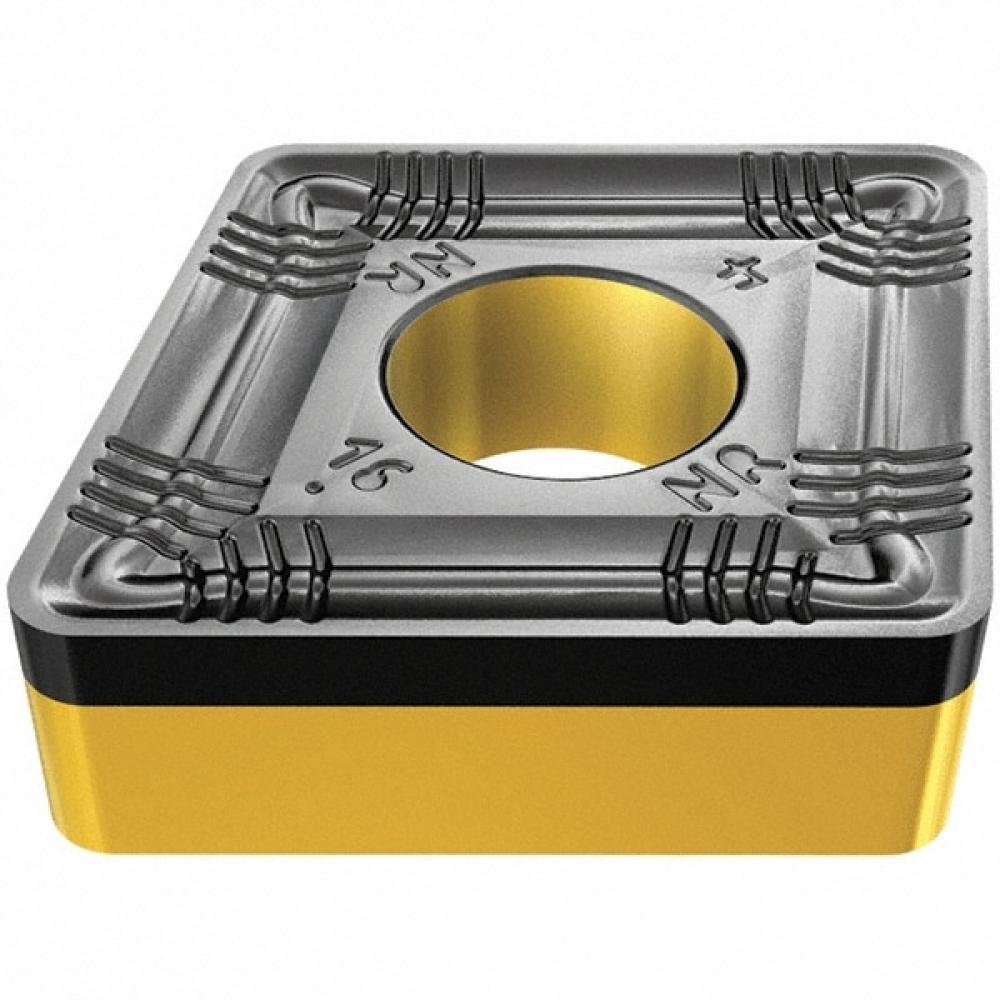

CNMM 644-NR IC907
Specifications
| Coating/Finish | TiAlN+TiN |
|---|---|
| Material | Carbide |
| Size | 0.75 |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.06 |
| Style | CNMM |
| Thickness (Inch) | 0.25 |
| Short Description | CNMM-644-NR-IC907 ISCAR INSERT |
| Long Description | Single-sided 80° rhombic inserts, used for rough turning applications. Feed range from .016 to .039 IPR and depth of cut from .079 to .39 inch. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.75 |
| Minimum Depth of Cut (Decimal) | 0.08 |
| Maximum Depth of Cut (Decimal) | 0.39 |
| Minimum Feed (Decimal) | 0.02 |
| Maximum Feed (Decimal) | 0.04 |
| Work Material | Stainless Steel+Steel+Hi Temp+Hardened Materials+Cast Iron+Non Ferrous |
| Clearance Angle | Negative |
| Machining Application | Finishing-Semi Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0630 |
| Family Short Description | Single-Sided 80° Rhombic Inserts for Rough Turning Applications |
| Height | 0.55 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 1.08 OZ |
| Width | 2.20 Inch |
| Insert Coating | TiAlN+TiN |
| APP1Name | Ext. 100° Diamond 75° Approach |
| FamilyName | CNMM-NR |
| Max. Depth Of Cut | 0.3940 |
| Insert Style | CNMM |
| Insert Shape | 80° Diamond |
| Insert Thickness | 0.2500 |
| Weight (OZ) | 1.07584 |
| Width (Inch) | 2.2 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
