Iscar
5591839

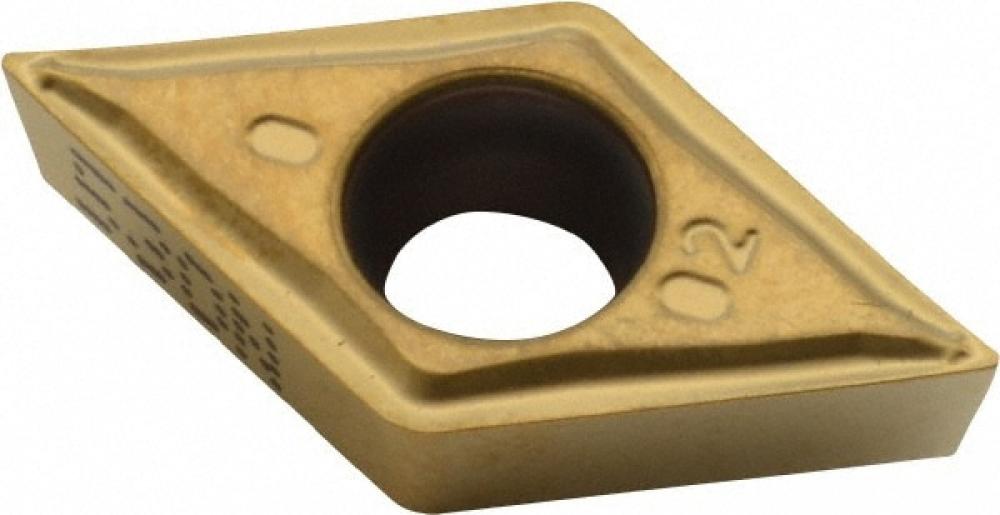

DCMT 3-0-SM IC530N
Specifications
| Coating/Finish | TiCN+TiN |
|---|---|
| Material | Cermet |
| Size | 0.38 |
| Included Angle | 55 degrees |
| Corner Radius (Inch) | 0.01 |
| Style | DCMT |
| Thickness (Inch) | 0.16 |
| Short Description | DCMT-3-0-SM-IC530N ISCAR CERMET INSERTS |
| Long Description | 55° rhombic 7° positive flank inserts used for semi-finishing and finish turning. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for a wide range of materials including soft and exotic alloys. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.46 |
| Minimum Depth of Cut (Decimal) | 0.02 |
| Maximum Depth of Cut (Decimal) | 0.1 |
| Minimum Feed (Decimal) | 0.002 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Stainless Steel+Steel |
| Clearance Angle | 7 deg Positive |
| Machining Application | Finishing-Semi Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0080 |
| Family Short Description | 55° Rhombic Inserts with a 7° Positive Flank for Semi-Finishing and Finish Turning on Soft Materials and Exotic Alloys |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.13 OZ |
| Width | 1.57 Inch |
| Insert Coating | TiCN+TiN |
| APP1Name | Ext. 55° Diamond 107.5° Appr. |
| FamilyName | DCMT/DCGT-SM |
| Max. Depth Of Cut | 0.0980 |
| Insert Style | DCMT |
| Insert Shape | 55° Diamond |
| Insert Thickness | 0.1560 |
| Weight (OZ) | 0.12698 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Cermet |
| Measurement Type | Inch |
