Iscar
5594731

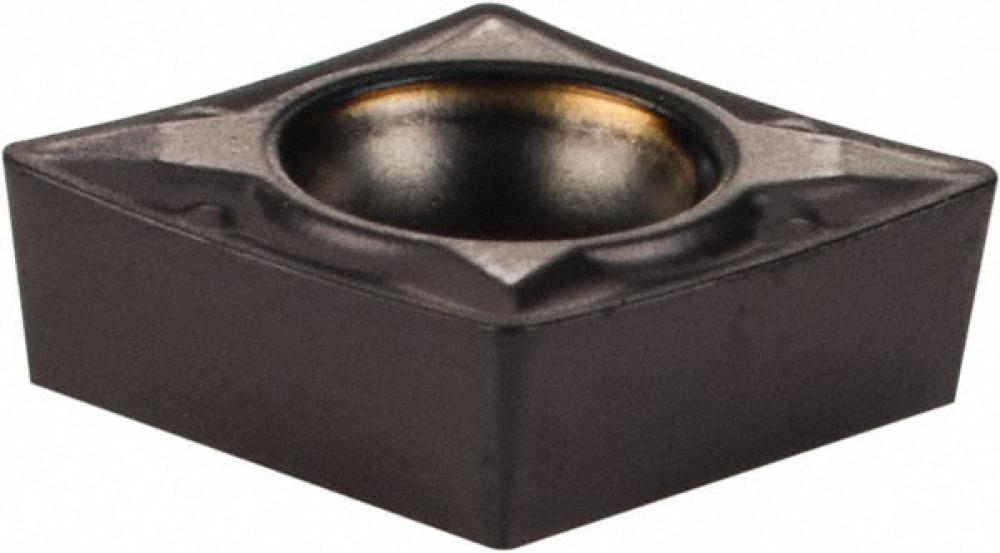

CCMT 2-1-PF IC907
Specifications
| Coating/Finish | TiAlN+TiN |
|---|---|
| Material | Carbide |
| Size | 0.25 |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | CCMT |
| Thickness (Inch) | 0.09 |
| Short Description | ISCAR CCMT-2-1-PF IC907 CARB INSERT R.016 (21.51/060204) |
| Long Description | 80° rhombic 7° positive flank inserts. Used for semi-finishing and finishing applications on soft materials and exotic alloys. Positive rake angle, low cutting forces. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.25 |
| Minimum Depth of Cut (Decimal) | 0.02 |
| Maximum Depth of Cut (Decimal) | 0.1 |
| Minimum Feed (Decimal) | 0.0016 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Stainless Steel+Steel+Hi Temp+Hardened Materials+Cast Iron+Non Ferrous |
| Clearance Angle | 7 deg Positive |
| Machining Application | Finishing-Semi Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0160 |
| Family Short Description | 80° Rhombic Inserts with a Positive Flank for Semi-Finishing and Finishing on Soft Materials and Exotic Alloys |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.08 OZ |
| Width | 1.57 Inch |
| Insert Coating | TiAlN+TiN |
| APP1Name | Int. 80° Diamond 95° Approach |
| FamilyName | CCMT-PF |
| Max. Depth Of Cut | 0.0980 |
| Insert Style | CCMT |
| Insert Shape | 80° Diamond |
| Insert Thickness | 0.0940 |
| Weight (OZ) | 0.08113 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
