Iscar
5595390

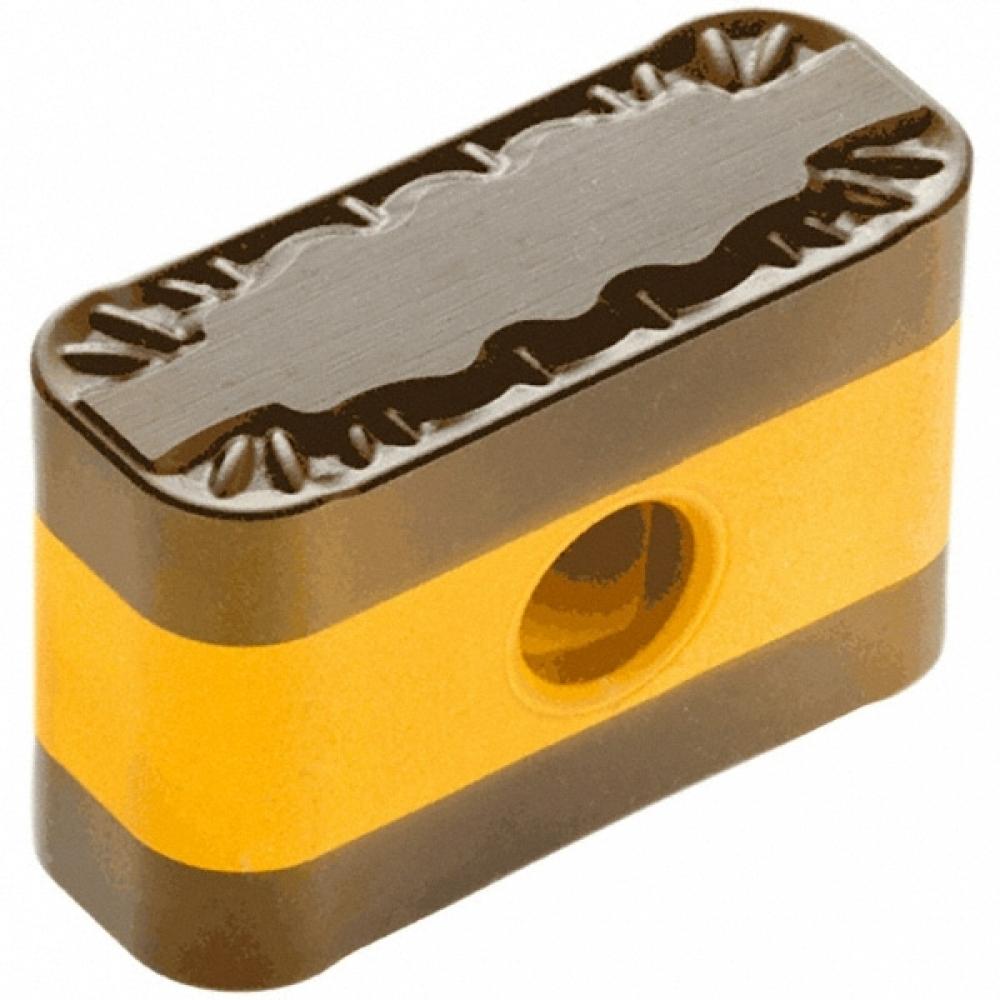

LNMX 191940-WM IC8250
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Material | Carbide |
| Corner Radius (Inch) | 0.16 |
| Style | LNMX |
| Thickness (Inch) | 0.75 |
| Short Description | LNMX-191940-WM-IC8250 ISCAR INSERT |
| Long Description | Tangentially clamped inserts for railroad wheel re-turning. |
| Unit Of Measure | Imperial |
| Shape | Tangential |
| Insert Edge Length (Decimal) | 0.75 |
| Minimum Depth of Cut (Decimal) | 0.01 |
| Maximum Depth of Cut (Decimal) | 0.2 |
| Minimum Feed (Decimal) | 0.02 |
| Maximum Feed (Decimal) | 0.06 |
| Work Material | Stainless Steel+Steel |
| Clearance Angle | Negative |
| Machining Application | Finishing-Roughing |
| Country of Origin | Korea |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.1570 |
| Family Short Description | Tangentially Clamped Inserts for Railroad Wheel Re-Turning |
| Height | 0.75 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 1.55 OZ |
| Width | 2.20 Inch |
| Insert Coating | TiCN+Al2O3+TiN |
| APP1Name | Ext. Tangential 84° Approach |
| FamilyName | LNMX 19/30 |
| Max. Depth Of Cut | 0.1970 |
| Insert Style | LNMX |
| Insert Shape | Tangential |
| Insert Thickness | 0.7500 |
| Weight (OZ) | 1.5485 |
| Width (Inch) | 2.2 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
