Iscar
5599172

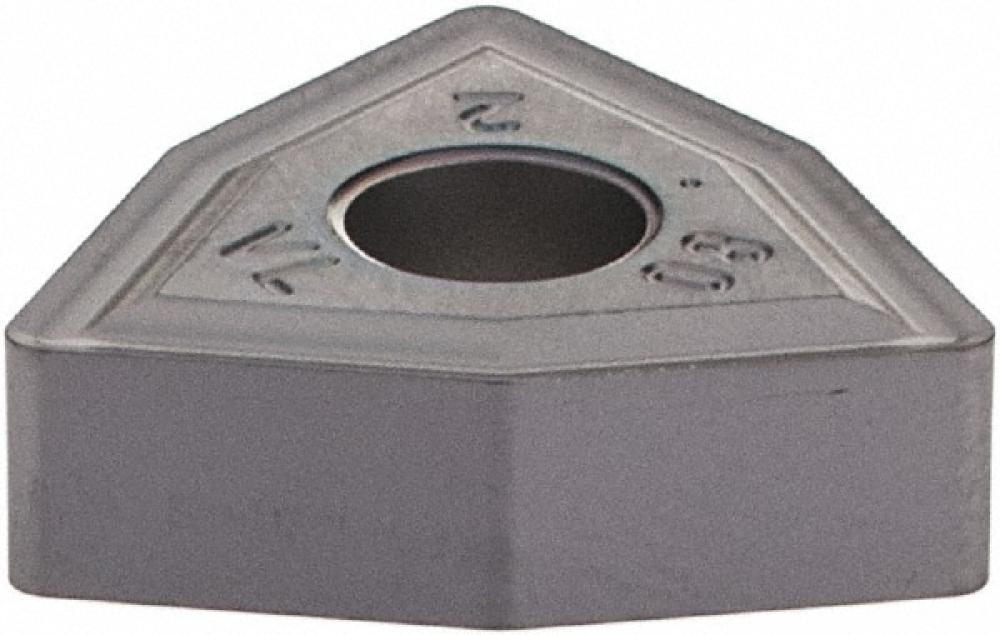

WNMG 432-VL IC908
Specifications
| Coating/Finish | TiAlN |
|---|---|
| Material | Carbide |
| Size | 0.5 |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.03 |
| Style | WNMG |
| Thickness (Inch) | 0.19 |
| Short Description | WNMG-432VL IC908 ISCAR INSERT |
| Long Description | A double-sided trigon inserts with a chipformer used on high temperature alloys and stainless steel parts like valves. Used for facing, longitudinal turning and profiling in roughing and finishing conditions. |
| Unit Of Measure | Imperial |
| Shape | Trigon |
| Insert Edge Length (Decimal) | 0.34 |
| Minimum Depth of Cut (Decimal) | 0.02 |
| Maximum Depth of Cut (Decimal) | 0.16 |
| Minimum Feed (Decimal) | 0.0039 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Stainless Steel+Steel+Hi Temp+Hardened Materials+Cast Iron |
| Clearance Angle | Negative |
| Machining Application | Semi Finishing-Semi Roughing |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0310 |
| Family Short Description | Double-Sided Trigon Inserts with a Chipformer for High Temperature Alloys and Stainless Steel Valves |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.38 OZ |
| Width | 1.57 Inch |
| Insert Coating | TiAlN |
| APP1Name | Ext. 80° Trigon 95° Approach |
| FamilyName | WNMG-VL |
| Max. Depth Of Cut | 0.1570 |
| Insert Style | WNMG |
| Insert Shape | 80° Trigon |
| Insert Thickness | 0.1870 |
| Weight (OZ) | 0.38095 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
