Iscar
5599579

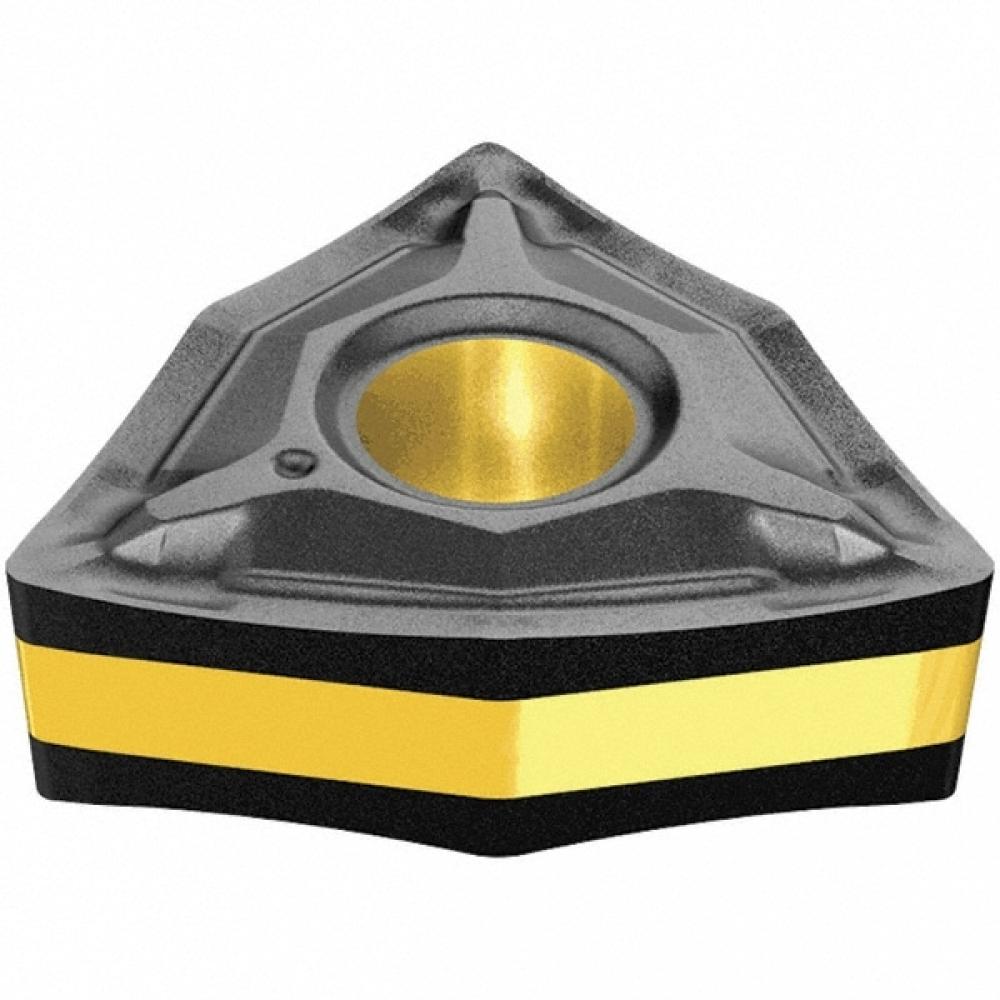

WNMG 3-2-WG IC520N
Specifications
| Coating/Finish | TiCN+TiN |
|---|---|
| Material | Cermet |
| Size | 0.38 |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.03 |
| Style | WNMG |
| Thickness (Inch) | 0.16 |
| Short Description | WNMG-3-2-WG-IC520N ISCAR CERMET INSERTS |
| Long Description | Double-sided trigon wiper inserts for high surface finish at high feed turning (0.3 to 0.6 mm/rev). Three to five times better surface finish compared to standard turning inserts at the same feeds. |
| Unit Of Measure | Imperial |
| Shape | Trigon |
| Insert Edge Length (Decimal) | 0.26 |
| Minimum Depth of Cut (Decimal) | 0.02 |
| Maximum Depth of Cut (Decimal) | 0.14 |
| Minimum Feed (Decimal) | 0.0039 |
| Maximum Feed (Decimal) | 0.02 |
| Work Material | Stainless Steel+Steel |
| Clearance Angle | Negative |
| Machining Application | Finishing-Medium |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0310 |
| Family Short Description | Double-Sided Trigon Wiper Inserts for High Surface Finish at High Feed Turning |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.12 OZ |
| Width | 1.57 Inch |
| Insert Coating | TiCN+TiN |
| APP1Name | Ext. 80° Trigon 95° Approach |
| FamilyName | WNMG-WG |
| Max. Depth Of Cut | 0.1380 |
| Insert Style | WNMG |
| Insert Shape | 80° Trigon |
| Insert Thickness | 0.1560 |
| Weight (OZ) | 0.1164 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Cermet |
| Measurement Type | Inch |
