Iscar
5600279

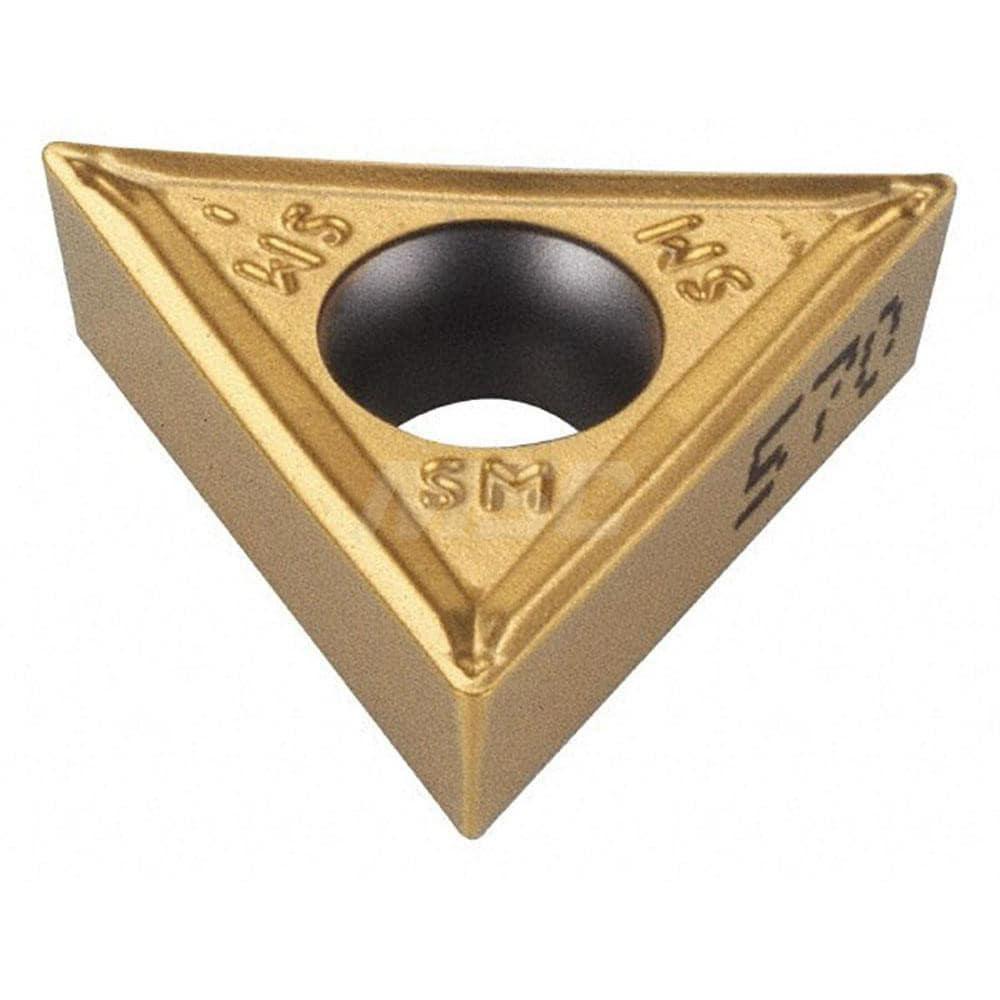

TCMT 2-1-19 IC20
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Material | Carbide |
| Size | 0.25 |
| Included Angle | 60 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | TCMT |
| Thickness (Inch) | 0.09 |
| Short Description | ISCAR TCMT-2-1-19-IC20 INSERT |
| Long Description | Triangular inserts with a 7° positive flat rake and a strong cutting edge for semi-roughing applications at medium to high feeds. |
| Unit Of Measure | Imperial |
| Shape | Triangle |
| Insert Edge Length (Decimal) | 0.43 |
| Minimum Depth of Cut (Decimal) | 0.02 |
| Maximum Depth of Cut (Decimal) | 0.12 |
| Minimum Feed (Decimal) | 0.0039 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Stainless Steel+Hi Temp+Hardened Materials+Cast Iron+Non Ferrous |
| Clearance Angle | 7 deg Positive |
| Machining Application | Finishing-Medium |
| Country of Origin | Israel |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0160 |
| Family Short Description | Triangular Inserts with a 7° Positive Flat Rake for Semi-Roughing Applications at Medium to High Feeds |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.10 OZ |
| Width | 1.57 Inch |
| Insert Coating | Uncoated |
| APP1Name | Ext. 60° Triangle 91° Approach |
| FamilyName | TCMT-19 |
| Max. Depth Of Cut | 0.1180 |
| Insert Style | TCMT |
| Insert Shape | 60° Triangle |
| Insert Thickness | 0.0940 |
| Weight (OZ) | 0.09524 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
