Iscar
5603016
LNKX 150608ANTN MM IC910
Specifications
| Material | Carbide |
|---|---|
| Coating/Finish | AlTiN |
| Type | Facing |
| Short Description | LNKX-150608ANTN-MM-IC910 ISCAR INSERT |

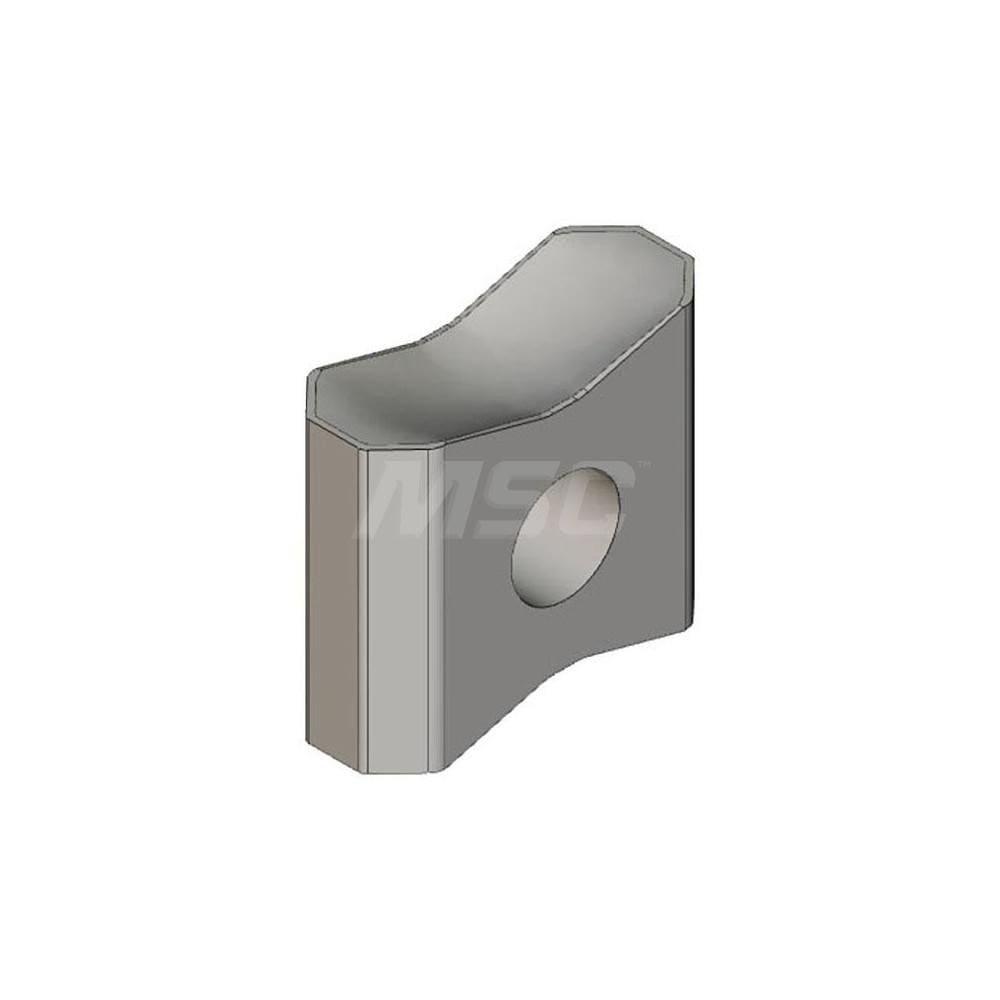

| Long Description | A tangentially clamped insert with a negative land, reinforced chipformer for unfavorable and high feed cutting conditions. |
| Shape | Tangential |
| Style | LNKX |
| Unit Of Measure | Imperial |
| Country of Origin | Israel |
| Base Item Number | Milling Indexable Inserts |
| Family Short Description | Tangentially Clamped Inserts with a Negative Land and Reinforced Chipformer for Unfavorable Cutting Conditions |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.48 OZ |
| Width | 1.57 Inch |
| APP1Name | Facing |
| FamilyName | LNKX/LNMT 150608ANTN MM |
| Weight (OZ) | 0.48325 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
