Iscar
5604291
HBR D1.0-QF IC908
Specifications
| Material | Carbide |
|---|---|
| Coating/Finish | TiAlN |
| Type | Profiling |

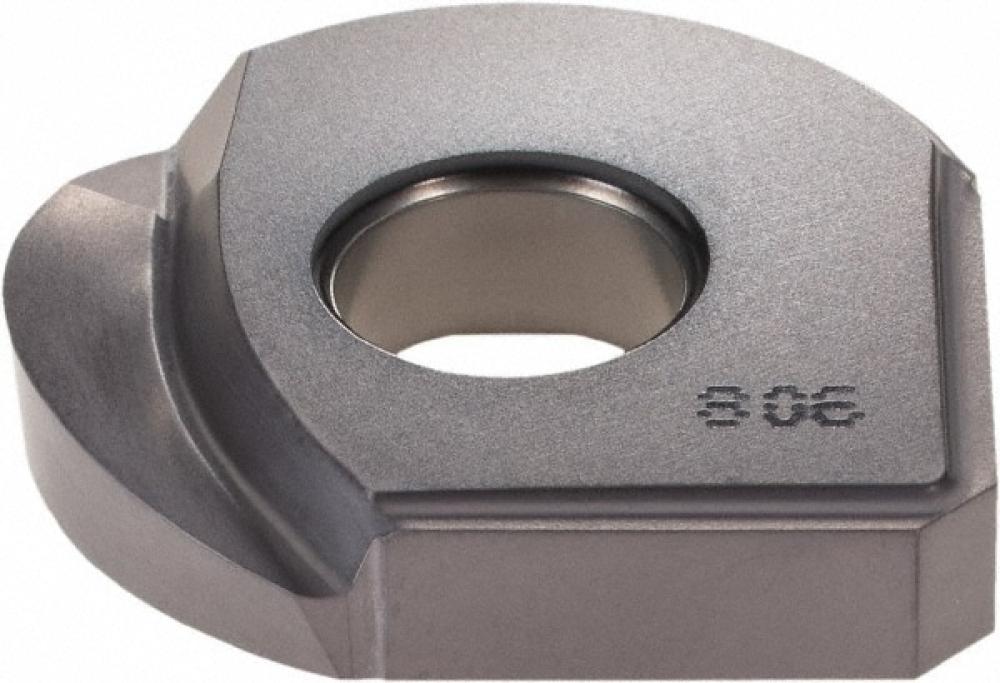

| Short Description | ISCAR HBR-D1.0-QF IC908 1" BALL MILL INSERT ROUGHING |
| Long Description | BALLPLUS, 2 cutting edges (fully effective), 220° spherical cutting profile inserts. Used for profiling, up and down ramping, steep profiles and undercutting. Accuracy is within .0004". May be used for roughing or finishing applications. |
| Style | HBR |
| Unit Of Measure | Imperial |
| Country of Origin | Israel |
| Base Item Number | Milling Indexable Inserts |
| Family Short Description | 220° Spherical Profile Inserts for Roughing and Semi-Finishing, Up and Down Ramping and Undercutting |
| Height | 0.51 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 1.21 OZ |
| Width | 2.20 Inch |
| APP1Name | Profiling |
| FamilyName | HBR-QF |
| Weight (OZ) | 1.20635 |
| Width (Inch) | 2.2 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
