Iscar
5604299
HCR D.62-QF IC328
Specifications
| Material | Carbide |
|---|---|
| Coating/Finish | TiCN |
| Type | Helical Interpolation |
| Short Description | ISCAR HCR-D.62-QF IC328 INSERT |

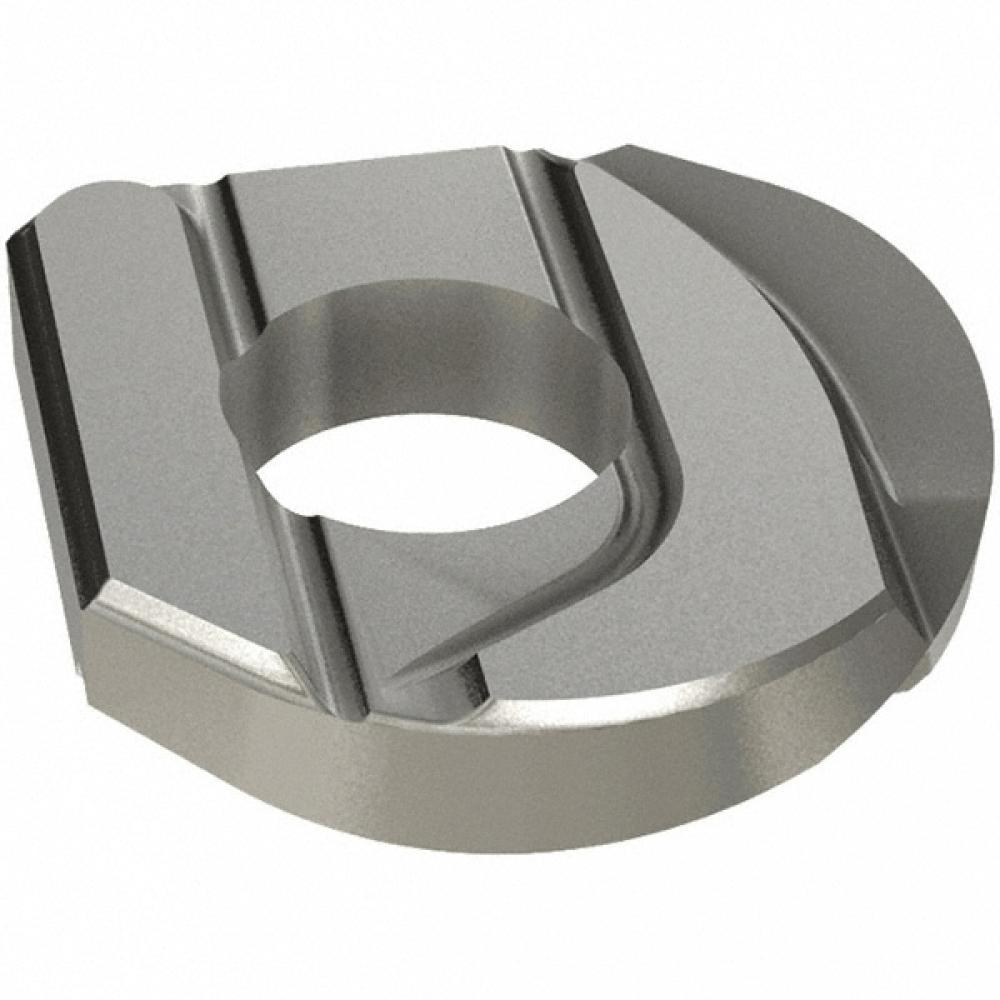

| Long Description | Ball nose inserts with 2 straight tangent cutting edges (fully effective) for cavity profiling and shouldering. Due to its high accuracy (.0004"), can be used for roughing and finishing. |
| Style | HCR |
| Unit Of Measure | Imperial |
| Country of Origin | Israel |
| Base Item Number | Milling Indexable Inserts |
| Family Short Description | Ball Nose Inserts with 2 Straight Tangent Cutting Edges (Fully Effective) for Cavity Profiling and Shouldering |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.28 OZ |
| Width | 1.57 Inch |
| APP1Name | Helical Interpolation |
| FamilyName | HCR |
| Weight (OZ) | 0.28219 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
