Iscar
5604852
MTECB 0606C14 1.25ISO IC908
Specifications
| Flute Type | Helical |
|---|---|
| Short Description | MTECB-0606C14-1.25ISO-908 ISCAR SC MILL THREAD (MTEC) |
| Material | Carbide |
| Coating | TiAlN |
| COO | Israel |
| Cutting Edge Material | Carbide |

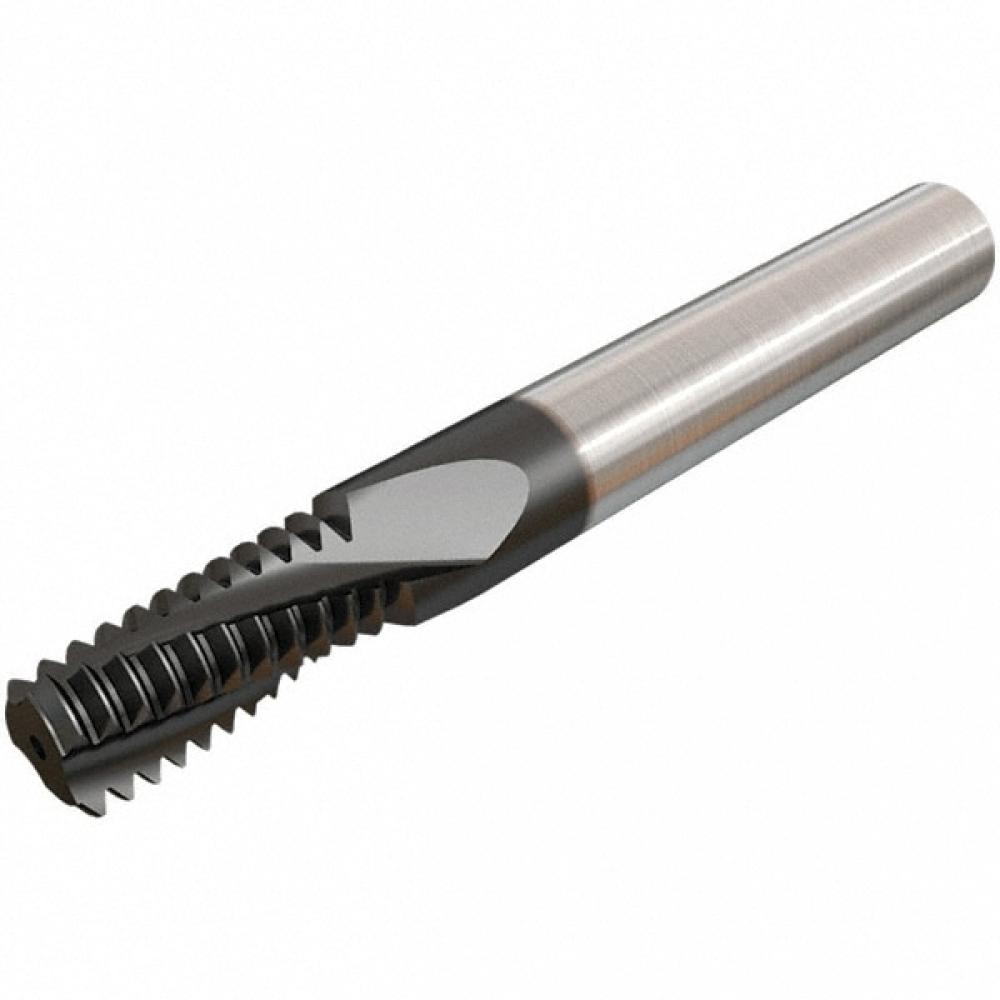

| Long Description | Solid carbide internal threading endmill with coolant hole, used for ISO thread profile. |
| Thread Size | M8 X 1.25, M10 X 1.25 |
| Shank Diameter | 0.2362" (6.000 mm) |
| Shank Type | Cylindrical |
| APP1Name | Internal Thread Milling |
| Overall Length | 2.2835" (58.000 mm) |
| FamilyName | MTECB-ISO |
| Cutter Diameter | 0.2362" (6.000 mm) |
| Weight (OZ) | 0.81129 |
| Width (Inch) | 0.47 |
| Measurement Type | Metric |
