Iscar
5604864

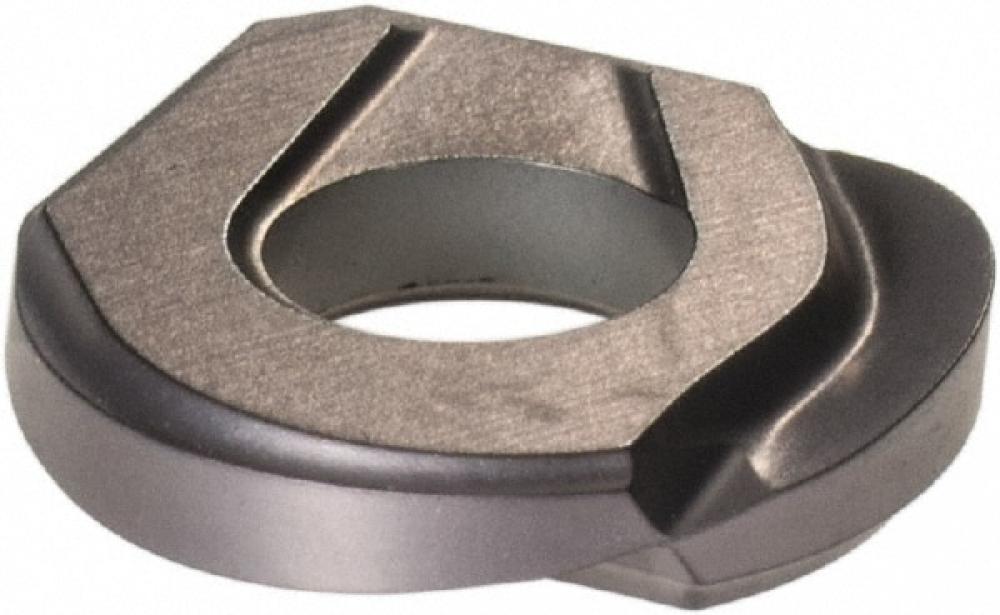

HBR D.50-QF IC928
Specifications
| Material | Carbide |
|---|---|
| Coating/Finish | TiAlN |
| Type | Profiling |
| Short Description | ISCAR HBR-D.50-QF IC328 1/2" INSERT FOR HCM MILL |
| Long Description | BALLPLUS, 2 cutting edges (fully effective), 220° spherical cutting profile inserts. Used for profiling, up and down ramping, steep profiles and undercutting. Accuracy is within .0004". May be used for roughing or finishing applications. |
| Style | HBR |
| Unit Of Measure | Imperial |
| Country of Origin | Israel |
| Base Item Number | Milling Indexable Inserts |
| Family Short Description | 220° Spherical Profile Inserts for Roughing and Semi-Finishing, Up and Down Ramping and Undercutting |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.17 OZ |
| Width | 1.57 Inch |
| APP1Name | Profiling |
| FamilyName | HBR-QF |
| Weight (OZ) | 0.16931 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
