Iscar
5604987

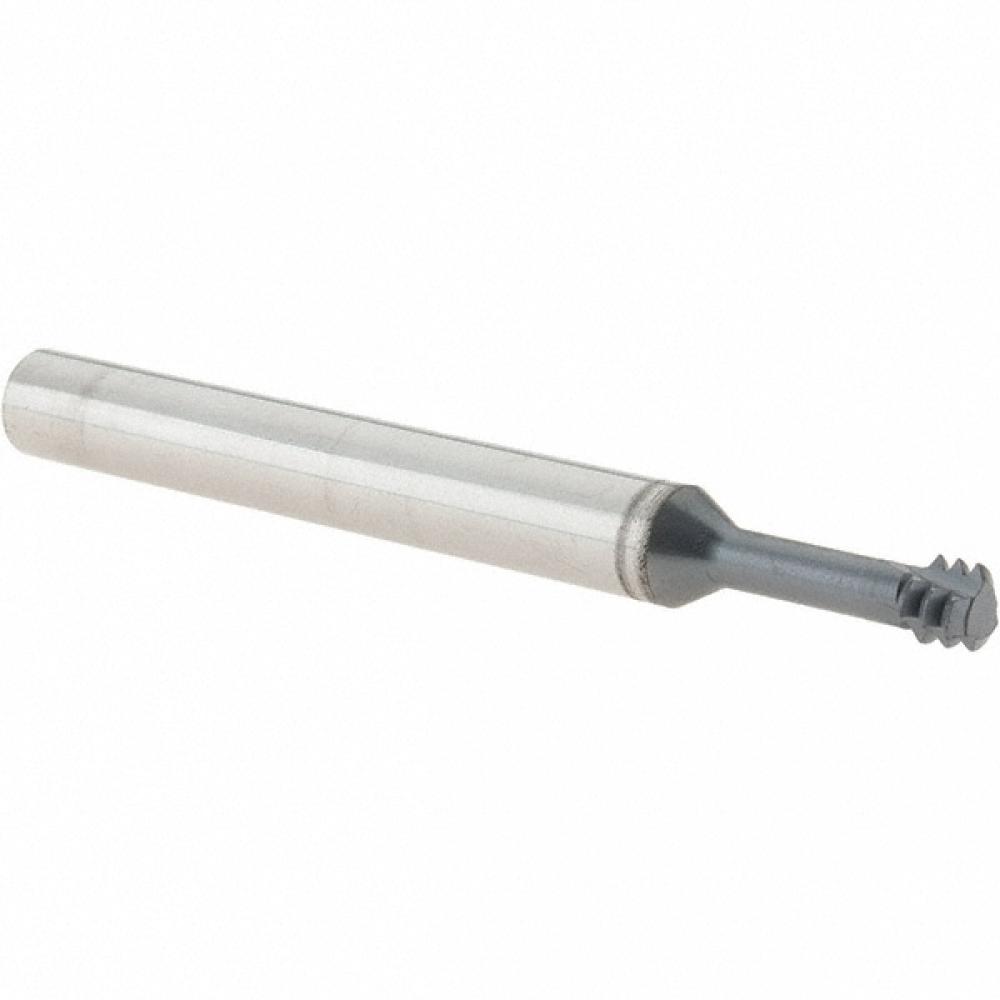

MTECS 0250C55 20UN IC908
Specifications
| Flute Type | Helical |
|---|---|
| Short Description | ISCAR 1/4-20 3-FORM CARB/TICN THR MILL .187x1/4x.550x2.5 3F |
| Material | Carbide |
| Coating | TiAlN |
| COO | Israel |
| Cutting Edge Material | Carbide |
| Long Description | Small diameter short solid carbide UN profile threading mills. High cutting speeds, short cycle time, low cutting forces due to the short threading contact resulting in accurate and parallel thread. |
| Thread Size | 1/4 - 20 |
| Shank Diameter | 0.2500" (6.350 mm) |
| Shank Type | Cylindrical |
| APP1Name | Internal Thread Milling |
| Overall Length | 2.5000" (63.500 mm) |
| FamilyName | MTECS-UN |
| Threads per Inch | 20 |
| Cutter Diameter | 0.1870" (4.750 mm) |
| Weight (OZ) | 0.95238 |
| Width (Inch) | 0.51 |
| Measurement Type | Inch |
