Iscar
5604989

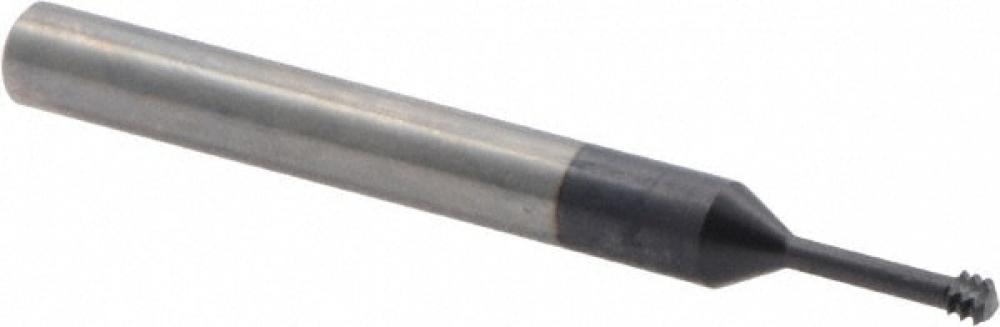

MTECS 0250C49 32UN IC908
Specifications
| Flute Type | Helical |
|---|---|
| Short Description | ISCAR MTECS-0250C49-32UN IC908 |
| Material | Carbide |
| Coating | TiAlN |
| COO | Israel |
| Cutting Edge Material | Carbide |
| Long Description | Small diameter short solid carbide UN profile threading mills. High cutting speeds, short cycle time, low cutting forces due to the short threading contact resulting in accurate and parallel thread. |
| Thread Size | #8 - 32, #10 - 32 |
| Shank Diameter | 0.2500" (6.350 mm) |
| Shank Type | Cylindrical |
| APP1Name | Internal Thread Milling |
| Overall Length | 2.5000" (63.500 mm) |
| FamilyName | MTECS-UN |
| Threads per Inch | 32 |
| Cutter Diameter | 0.1260" (3.200 mm) |
| Weight (OZ) | 9.38272 |
| Width (Inch) | 0.47 |
| Measurement Type | Inch |
