Iscar
5605064

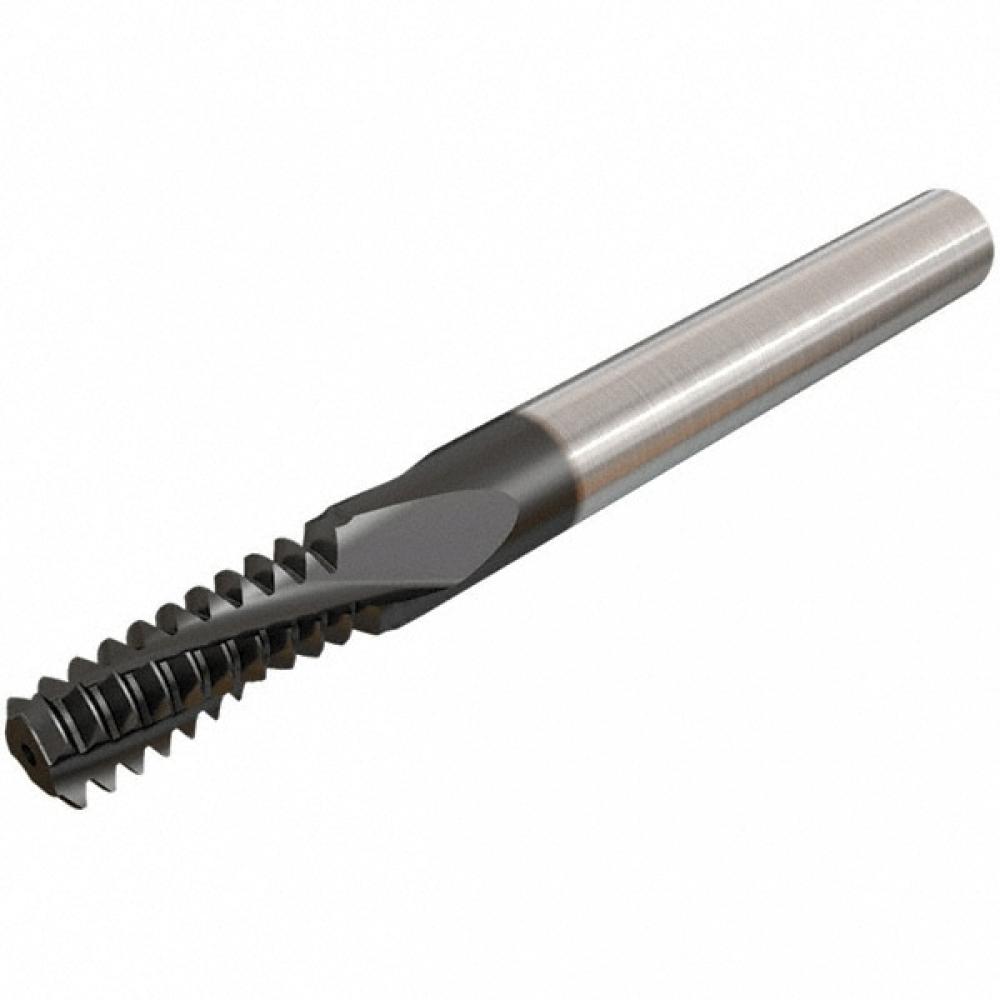

MTECB 08067C16 16UN IC908
Specifications
| Flute Type | Helical |
|---|---|
| Short Description | MTECB-08067C16-16UN-908 ISCAR SC MILL THREAD (MTEC) |
| Material | Carbide |
| Coating | TiAlN |
| COO | Israel |
| Cutting Edge Material | Carbide |
| Long Description | Solid carbide threading endmills with coolant hole for internal UN thread profile. |
| Thread Size | 3/8 - 16 |
| Shank Diameter | 0.3150" (8.000 mm) |
| Shank Type | Cylindrical |
| APP1Name | Internal Thread Milling |
| Overall Length | 2.5197" (64.000 mm) |
| FamilyName | MTECB-UN |
| Threads per Inch | 16 |
| Cutter Diameter | 0.2638" (6.700 mm) |
| Weight (OZ) | 1.44621 |
| Width (Inch) | 0.51 |
| Measurement Type | Metric |
