Iscar
5605078
MTECB 2020E47 11W IC908
Specifications
| Flute Type | Helical |
|---|---|
| Short Description | ISCAR MTECB 2020E47 11W 908 |
| Material | Carbide |
| Coating | TiAlN |
| COO | Israel |
| Cutting Edge Material | Carbide |

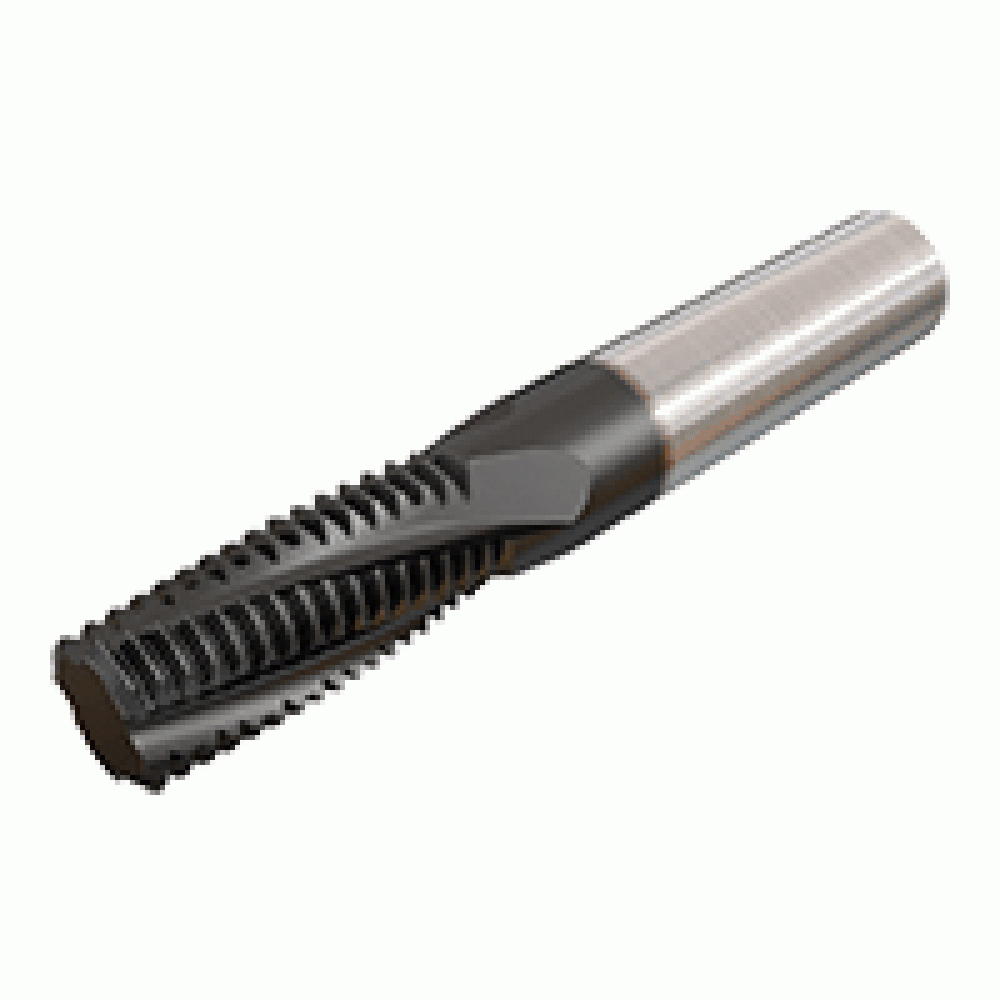

| Long Description | Solid carbide internal or external threading endmills with coolant hole for BSF/BSP Thread Profiles |
| Thread Size | G1 - 11 |
| Shank Diameter | 0.7874" (20.000 mm) |
| Shank Type | Cylindrical |
| APP1Name | External Thread Milling |
| Overall Length | 4.1339" (105.000 mm) |
| FamilyName | MTECB-W |
| Threads per Inch | 11 |
| Cutter Diameter | 0.7874" (20.000 mm) |
| Weight (OZ) | 14.46208 |
| Width (Inch) | 1.26 |
| Measurement Type | Metric |
