Iscar
5605083
MTECB 08076C10 27NPT IC908
Specifications
| Flute Type | Helical |
|---|---|
| Short Description | MTECB-08076C10-27NPT-908 ISCAR SC MILL THREAD (MTEC) |
| Material | Carbide |
| Coating | TiAlN |
| COO | Israel |
| Cutting Edge Material | Carbide |

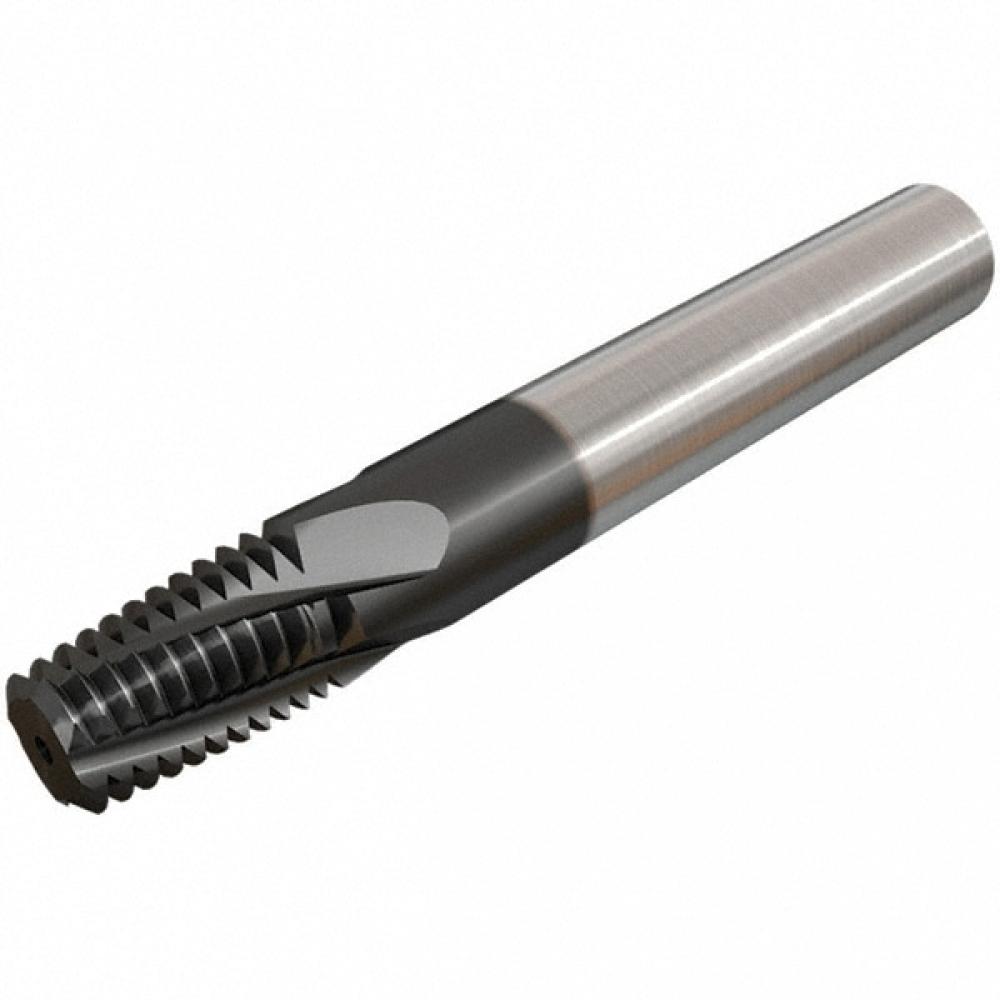

| Long Description | Solid carbide threading endmills with coolant hole for an external or internal NPT thread profile. |
| Thread Size | 1/8 - 27 |
| Shank Diameter | 0.3150" (8.000 mm) |
| Shank Type | Cylindrical |
| APP1Name | External Thread Milling |
| Overall Length | 2.5197" (64.000 mm) |
| FamilyName | MTECB-NPT |
| Threads per Inch | 27 |
| Cutter Diameter | 0.2992" (7.600 mm) |
| Weight (OZ) | 1.51675 |
| Width (Inch) | 0.71 |
| Measurement Type | Metric |
