Iscar
5605126

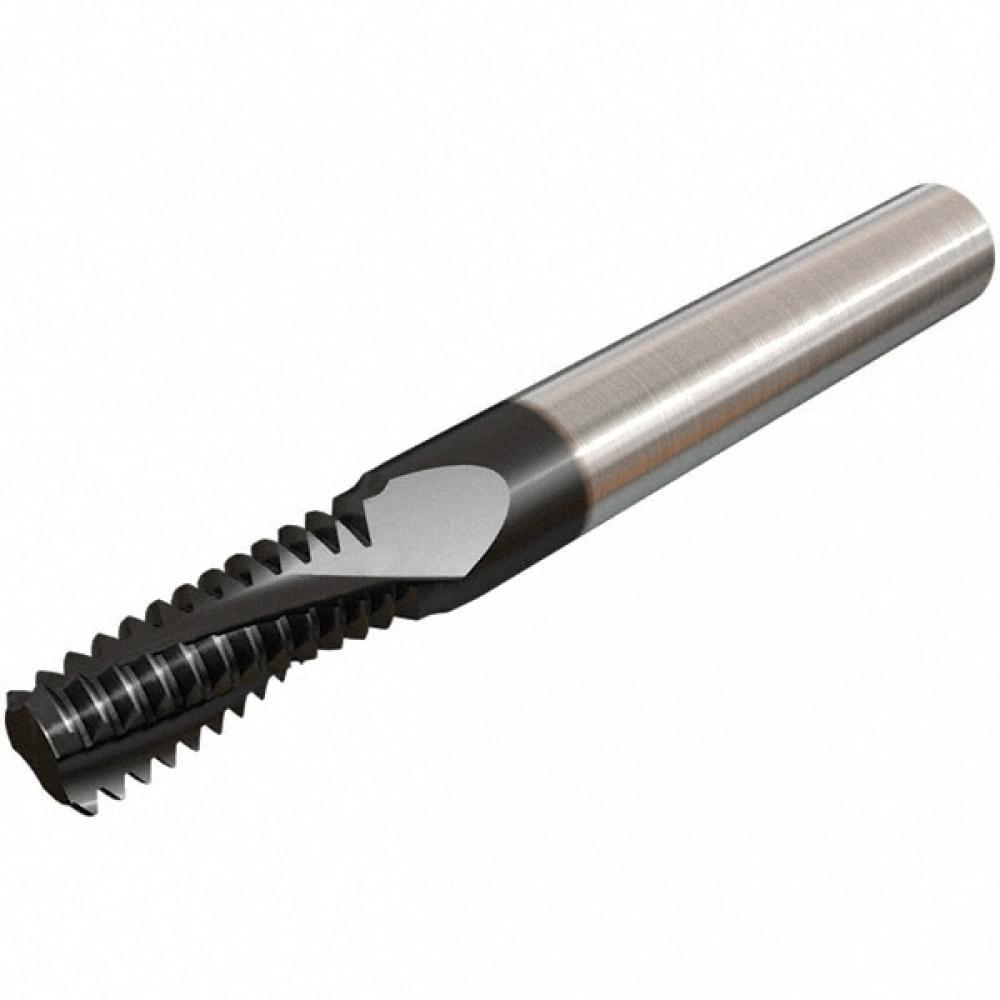

MTECB 0312C08 14UN IC908
Specifications
| Flute Type | Helical |
|---|---|
| Short Description | MTECB-0312C08-14UN-908 ISCAR SC MILL THREAD (MTEC) |
| Material | Carbide |
| Coating | TiAlN |
| COO | Israel |
| Cutting Edge Material | Carbide |
| Long Description | Solid carbide threading endmills with coolant holes for internal UN thread profile. |
| Thread Size | 7/16 - 14 |
| Shank Diameter | 0.3130" (7.950 mm) |
| Shank Type | Cylindrical |
| APP1Name | Internal Thread Milling |
| Overall Length | 2.5000" (63.500 mm) |
| FamilyName | MTECB-UN |
| Threads per Inch | 14 |
| Cutter Diameter | 0.3030" |
| Weight (OZ) | 1.30511 |
| Width (Inch) | 0.51 |
| Measurement Type | Inch |
