Iscar
5605128
MTECB 0375C08 13UN IC908
Specifications
| Flute Type | Helical |
|---|---|

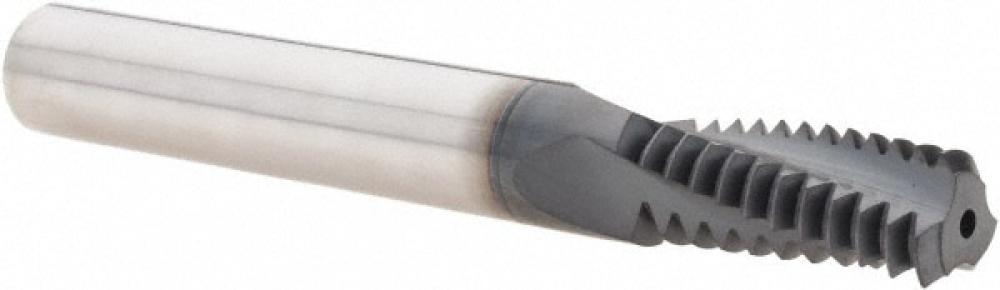

| Short Description | MTECB-0375C08-13UN-908 THREADMILL |
| Material | Carbide |
| Coating | TiAlN |
| COO | Israel |
| Cutting Edge Material | Carbide |
| Long Description | Solid carbide threading endmills with coolant holes for internal UN thread profile. |
| Thread Size | 1/2 - 13 |
| Shank Diameter | 0.3750" |
| Shank Type | Cylindrical |
| APP1Name | Internal Thread Milling |
| Overall Length | 3.0000" (76.200 mm) |
| FamilyName | MTECB-UN |
| Threads per Inch | 13 |
| Cutter Diameter | 0.3620" |
| Weight (OZ) | 2.46914 |
| Width (Inch) | 0.71 |
| Measurement Type | Inch |
