Iscar
5605134

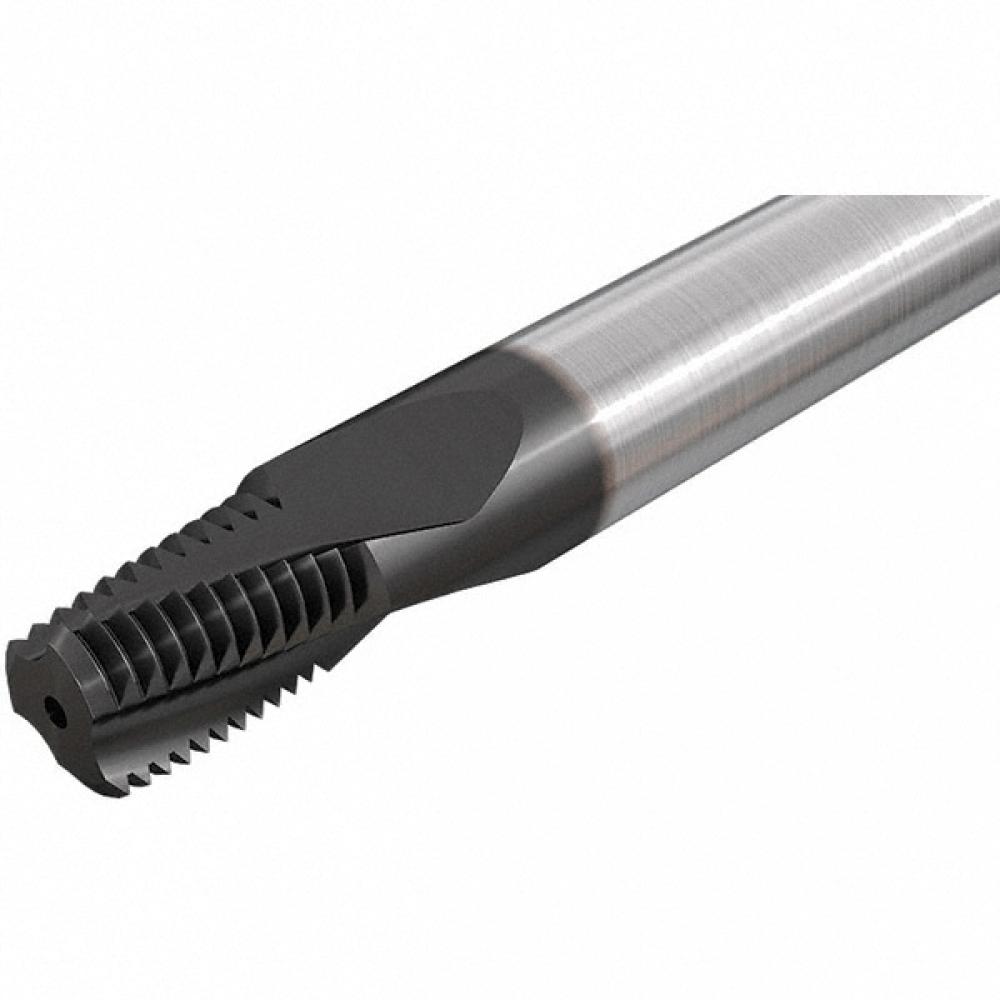

MTECB 0312C04 27NPT IC908
Specifications
| Flute Type | Helical |
|---|---|
| Short Description | ISCAR 1/8-27NPT CARB/ALTIN THR MILL .299x5/16x.430x2.5 3F |
| Material | Carbide |
| Coating | TiAlN |
| COO | Israel |
| Cutting Edge Material | Carbide |
| Long Description | Solid carbide threading endmills with coolant hole for an external or internal NPT thread profile. |
| Thread Size | 1/8 - 27 |
| Shank Diameter | 0.3130" (7.950 mm) |
| Shank Type | Cylindrical |
| APP1Name | External Thread Milling |
| Overall Length | 2.5000" (63.500 mm) |
| FamilyName | MTECB-NPT |
| Threads per Inch | 27 |
| Cutter Diameter | 0.2990" |
| Weight (OZ) | 1.51675 |
| Width (Inch) | 0.43 |
| Measurement Type | Inch |
