Iscar
5605422

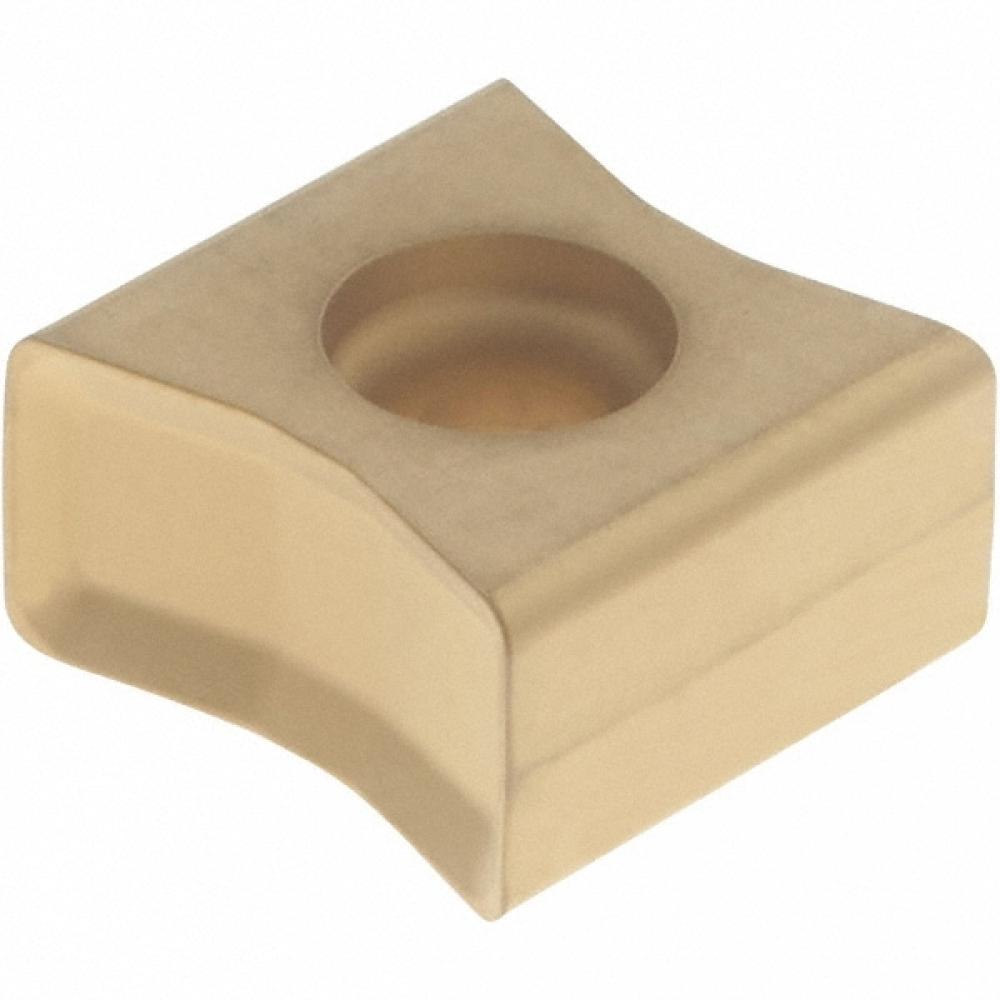

LNKX 1106PN-N MM IC4100
Specifications
| Material | Carbide |
|---|---|
| Coating/Finish | TiCN+Al2O3+TiN |
| Type | T Slotting |
| Short Description | LNKX-1106PN-N-MM-IC4100 |
| Long Description | TANGMILL Tangentially clamped inserts, peripherally ground with a very positive chipformer and a reinforced cutting edge. Feature low cutting forces and excellent surface finish. |
| Shape | Tangential |
| Style | LNKX |
| Unit Of Measure | Imperial |
| Country of Origin | Israel |
| Base Item Number | Milling Indexable Inserts |
| Family Short Description | Tangentially Clamped Inserts with a Very Positive Chipformer and Reinforced Cutting Edge |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.29 OZ |
| Width | 1.57 Inch |
| APP1Name | T Slotting |
| FamilyName | LNKX/LNMT 1106 |
| Weight (OZ) | 0.28571 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
