Iscar
5605775

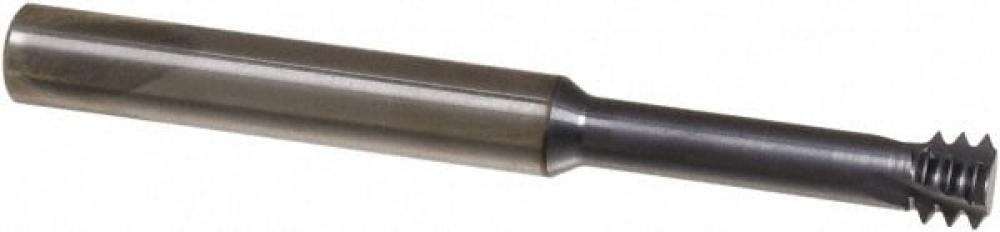

MTECS 0606C23 18UN IC908
Specifications
| Flute Type | Helical |
|---|---|
| Short Description | MTECS-0606C23-18UN-908 ISCAR SC MILL THREAD (MTEC) |
| Material | Carbide |
| Coating | TiAlN |
| COO | Israel |
| Cutting Edge Material | Carbide |
| Long Description | Small diameter solid carbide UN profile threading mills. High cutting speeds, short cycle time, low cutting forces due to the short threading contact resulting in accurate and parallel thread. |
| Thread Size | 5/16 - 18 |
| Shank Diameter | 0.2362" (6.000 mm) |
| Shank Type | Cylindrical |
| APP1Name | Internal Thread Milling |
| Overall Length | 2.2835" (58.000 mm) |
| FamilyName | MTECS-UN |
| Threads per Inch | 18 |
| Cutter Diameter | 0.2362" (6.000 mm) |
| Weight (OZ) | 0.77601 |
| Width (Inch) | 0.51 |
| Measurement Type | Metric |
