Iscar
5605884

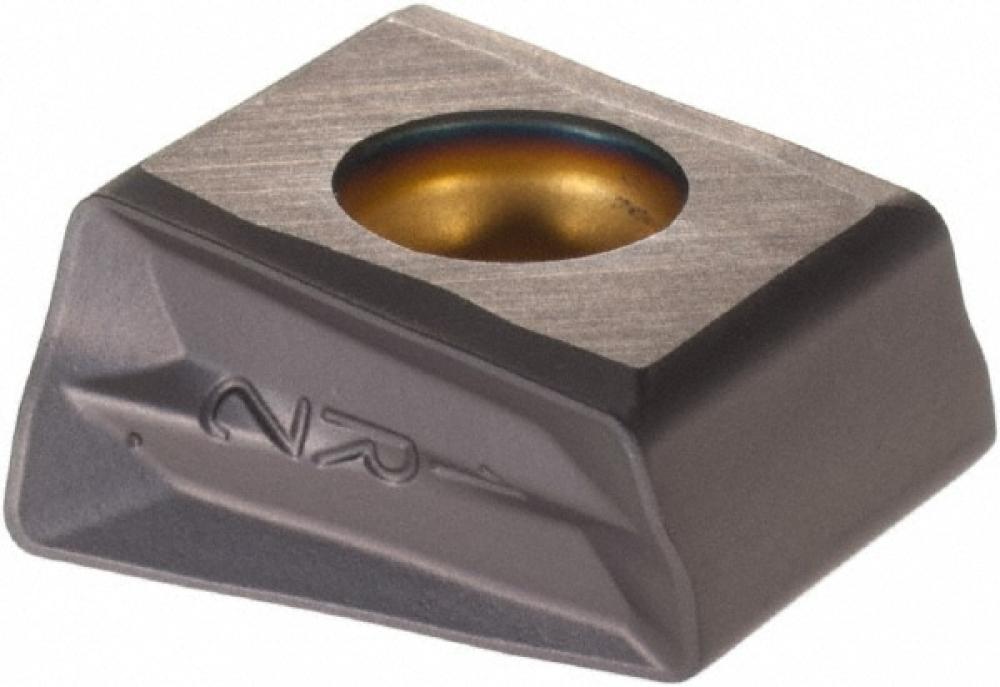

T490 LNMT 1306PNTR DT7150
Specifications
| Material | Carbide |
|---|---|
| Coating/Finish | MTCVD Al2O3 & TiAlN PVD |
| Type | Shouldering |
| Short Description | T490-LNMT-1306PNTR-DT7150 ISCAR INSERT |
| Long Description | HELITANG - Tangentially clamped inserts with 4 helical cutting edges. The unique pocket design prevents insert pull-out and enables tools with larger core diameters compared with regular radially orientated inserts. |
| Shape | Tangential |
| Style | LNMT |
| Unit Of Measure | Imperial |
| Country of Origin | Israel |
| Base Item Number | Milling Indexable Inserts |
| Family Short Description | Tangentially Clamped Inserts with 4 Helical Cutting Edges |
| Height | 0.63 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.42 OZ |
| Width | 1.57 Inch |
| APP1Name | Bottom Shouldering |
| FamilyName | T490 LNMT/LNHT/LNAR 1306 |
| Weight (OZ) | 0.42328 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
