Iscar
5606003
HTP LNHT 1006 ER IC810
Specifications
| Material | Carbide |
|---|---|
| Coating/Finish | AlTiCrN+TiN |
| Type | Facing |

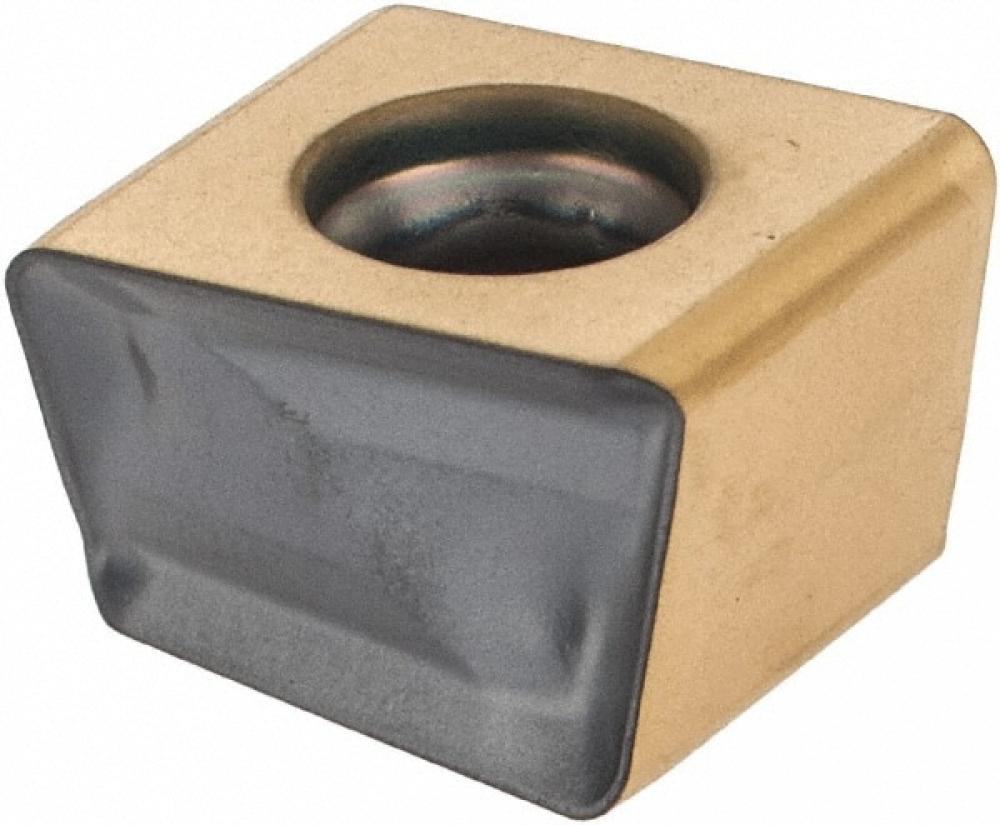

| Short Description | ISCAR HTP-LNHT-1006ER IC810 CARB MILLING INSERT |
| Long Description | TANGPLUNGE Tangentially clamped insert with 4 cutting edgesuused on plungers. The insert orientation on the tool resulte in excellent flatness. |
| Shape | Tangential |
| Style | LNHT |
| Unit Of Measure | Imperial |
| Country of Origin | Israel |
| Base Item Number | Milling Indexable Inserts |
| Family Short Description | Tangentially Clamped Inserts with 4 Cutting Edges for Plungers |
| Height | 0.63 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.28 OZ |
| Width | 1.57 Inch |
| APP1Name | Facing |
| FamilyName | HTP LN.. 1006 |
| Weight (OZ) | 0.27866 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
