Iscar
5606321

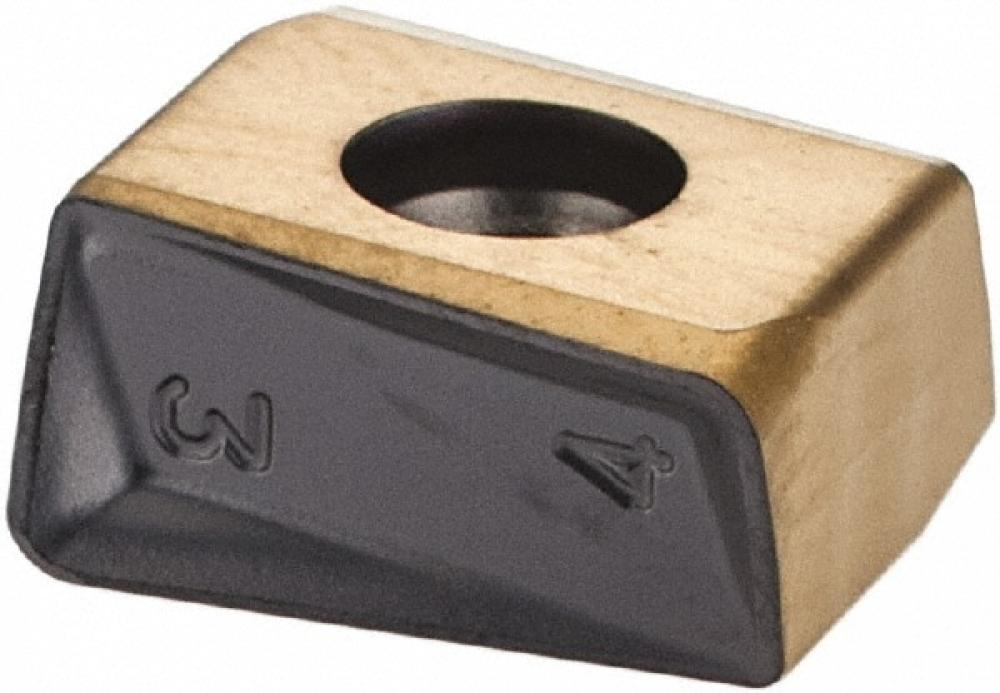

T490 LNHT 080408PNR IC808
Specifications
| Material | Carbide |
|---|---|
| Coating/Finish | TiAlN+AlTiN+TiN |
| Type | Facing |
| Short Description | ISCAR T490-LNHT-080408PNR IC808 CARB INSERT |
| Long Description | HELITANG - Tangentially clamped inserts with 4 helical cutting edges. The unique pocket design, prevents insert pull-out and enables tools with larger core diameters compared with regular radially orientated inserts. |
| Shape | Tangential |
| Style | LNHT |
| Unit Of Measure | Imperial |
| Country of Origin | Israel |
| Base Item Number | Milling Indexable Inserts |
| Family Short Description | Tangentially Clamped Inserts with 4 Helical Cutting Edges |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.13 OZ |
| Width | 1.57 Inch |
| APP1Name | Facing |
| FamilyName | T490 LNMT/LNHT 0804 |
| Weight (OZ) | 0.13051 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
