Iscar
5606417

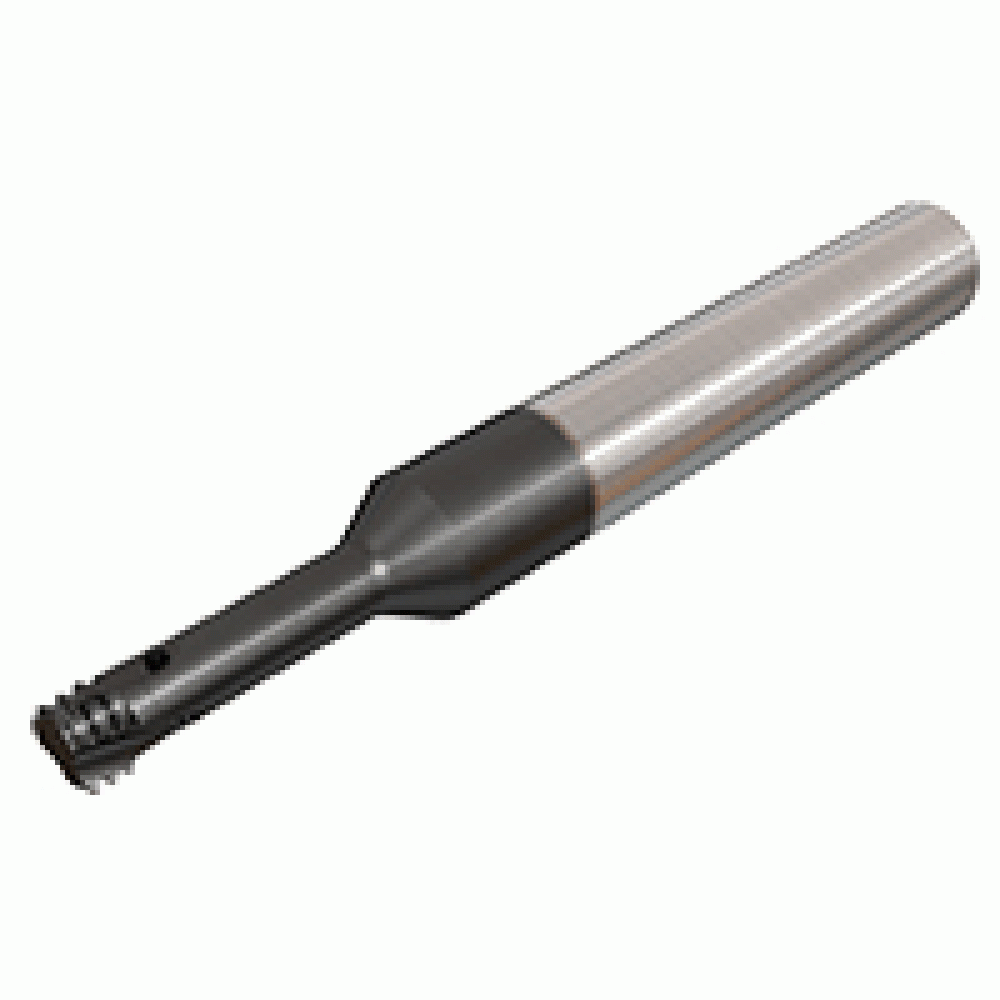

MTECS 08067C20 24UNJ IC908
Specifications
| Flute Type | Helical |
|---|---|
| Short Description | MTECS-08067C20-24UNJ-908 ISCAR SC MILL THREAD (MTEC) |
| Material | Carbide |
| Coating | TiAlN |
| COO | Israel |
| Cutting Edge Material | Carbide |
| Long Description | Small diameter short solid carbide UNJ-type profile threading endmills with coolant holes directed to the cutting edges. Used for internal J-type thread length of up to 2.5xD in the aerospace industry and for other applications. |
| Thread Size | 5/16, 3/8 - 24 |
| Shank Diameter | 0.3150" (8.000 mm) |
| Shank Type | Cylindrical |
| APP1Name | Internal Thread Milling |
| Overall Length | 2.5197" (64.000 mm) |
| FamilyName | MTECS-UNJ |
| Threads per Inch | 24 |
| Cutter Diameter | 0.2638" (6.700 mm) |
| Weight (OZ) | 1.37566 |
| Width (Inch) | 0.51 |
| Measurement Type | Inch |
