Iscar
5606879

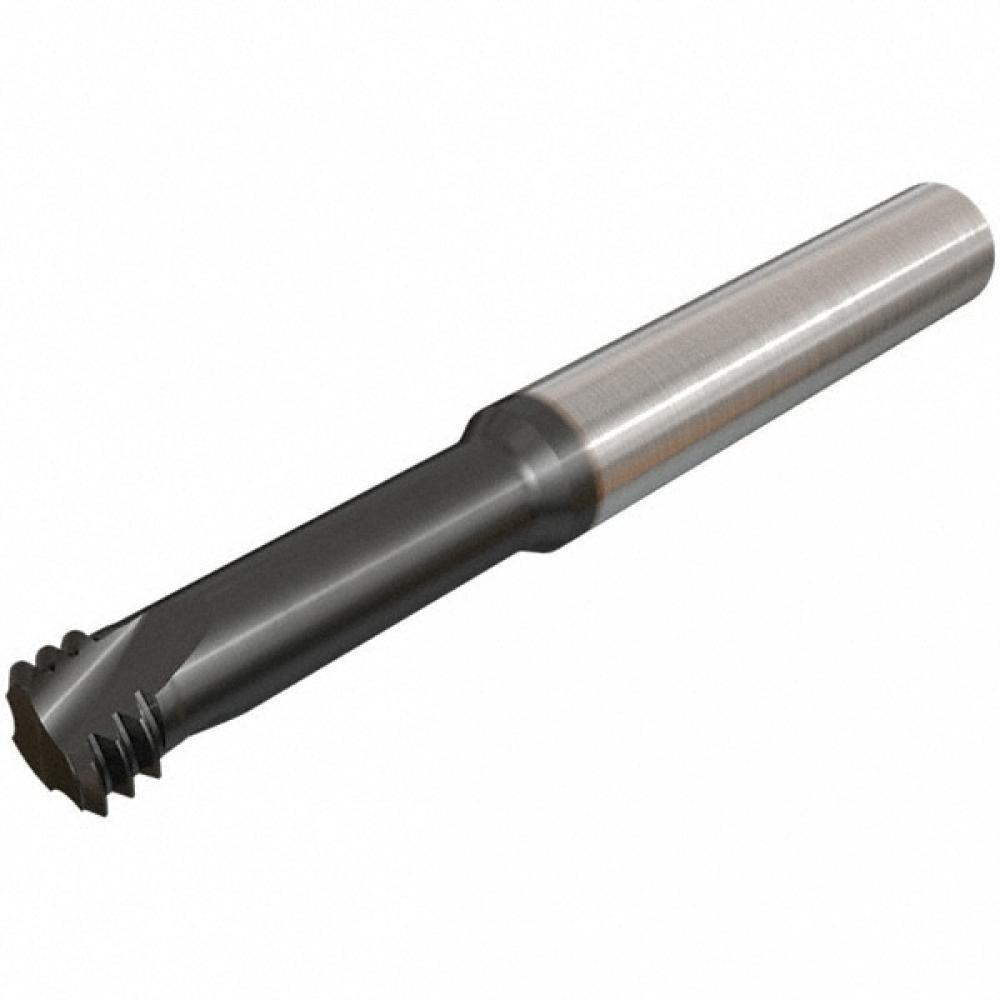

MTECSH 0808C25 20UN IC903
Specifications
| Flute Type | Helical |
|---|---|
| Short Description | MTECSH-0808C25-20UN-903 ISCAR SC MILL THREAD (MTEC) |
| Material | Carbide |
| Coating | TiAlN |
| COO | Israel |
| Cutting Edge Material | Carbide |
| Long Description | Small diameter short left-hand (CNC code M04) solid carbide UN profile threading endmills. Used for hardened steel. High cutting speeds, low cutting forces due to the short threading contact resulting in accurate and parallel thread. |
| Thread Size | 7/16 - 20 |
| Shank Diameter | 0.3150" (8.000 mm) |
| Shank Type | Cylindrical |
| APP1Name | Internal Thread Milling |
| Overall Length | 2.5197" (64.000 mm) |
| FamilyName | MTECSH-UN |
| Threads per Inch | 20 |
| Cutter Diameter | 0.3150" (8.000 mm) |
| Weight (OZ) | 1.44621 |
| Width (Inch) | 0.43 |
| Measurement Type | Metric |
