Iscar
5607510

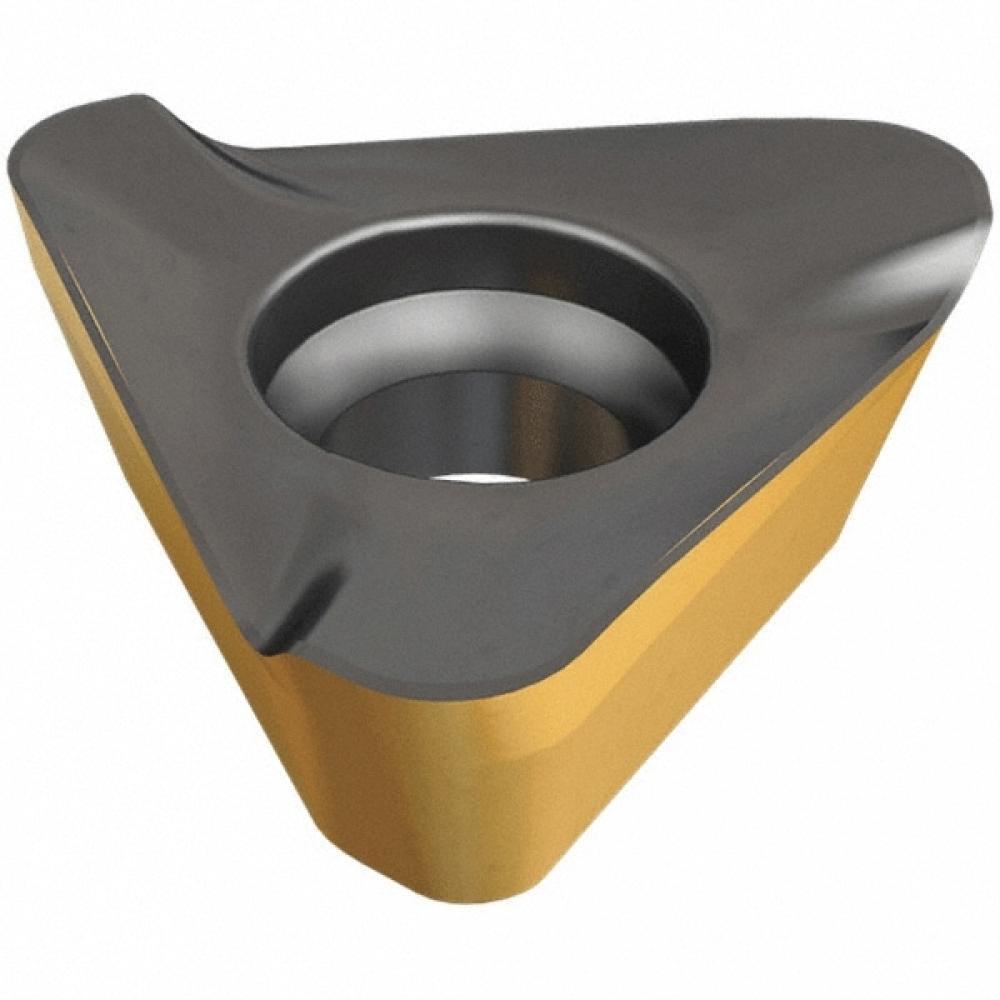

HM390 TDCT 1505PDR IC810
Specifications
| Material | Carbide |
|---|---|
| Coating/Finish | AlTiCrN+TiN |
| Type | Facing |
| Short Description | ISCAR HM390 TDCT 1505PDR IC810 |
| Long Description | Triangular inserts with 3 helical cutting edges for 90° shoulder accuracy. For general use applications. |
| Shape | Triangular |
| Style | TDCT |
| Unit Of Measure | Imperial |
| Country of Origin | Israel |
| Base Item Number | Milling Indexable Inserts |
| Family Short Description | Triangular Inserts with 3 Helical Cutting Edges for 90° Shoulder Accuracy |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.32 OZ |
| Width | 1.57 Inch |
| APP1Name | Facing |
| FamilyName | HM390 TDKT/CT 1505 |
| Weight (OZ) | 0.31746 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
