Iscar
5620805

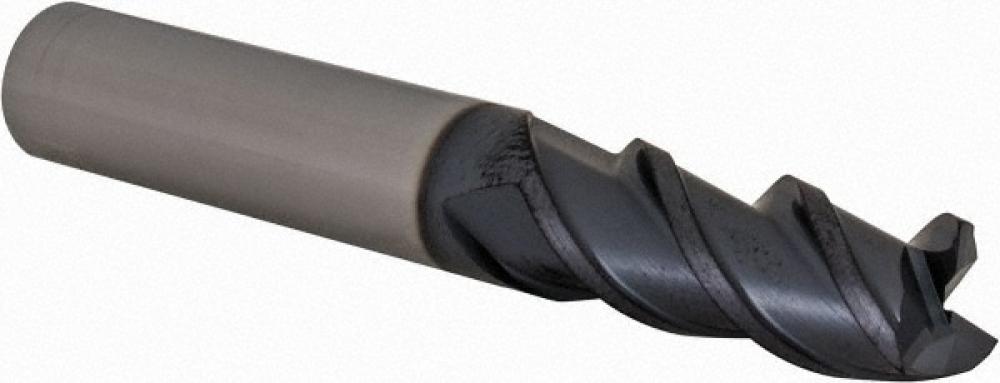

ECI-B-3 375-875-C375 IC900
Specifications
| Material | Carbide |
|---|---|
| Short Description | ISCAR 3/8x7/8x3 3FL CARB ENDMILL AlTiN |
| Shank Diameter | 0.3750" (3/8 ) |
| Overall Length | 3.0000" (76.200 mm) (3) |
| Long Description | 3 flute, 45° helix, medium length, slot / drill solid carbide endmills. |
| Diameter | 0.3750" (3/8 ) |
| Flute Length | 0.8700" |
| Coating | AlTiN |
| APP1Name | Counter Boring |
| FamilyName | ECI-B-3 |
| COO | Korea |
| End/Corner Shape | Square End |
| Weight (OZ) | 2.03527 |
| Width (Inch) | 0.79 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
