Iscar
5620901
ECI-E-3 1.0-1.5-W1.0 IC900
Specifications
| Material | Carbide |
|---|---|
| Short Description | ISCAR 1x1.1/2x4 3FL CARB SEM AlTiN |
| Shank Diameter | 1.0000" (25.400 mm) (1) |
| Overall Length | 4.0000" (101.600 mm) (4) |

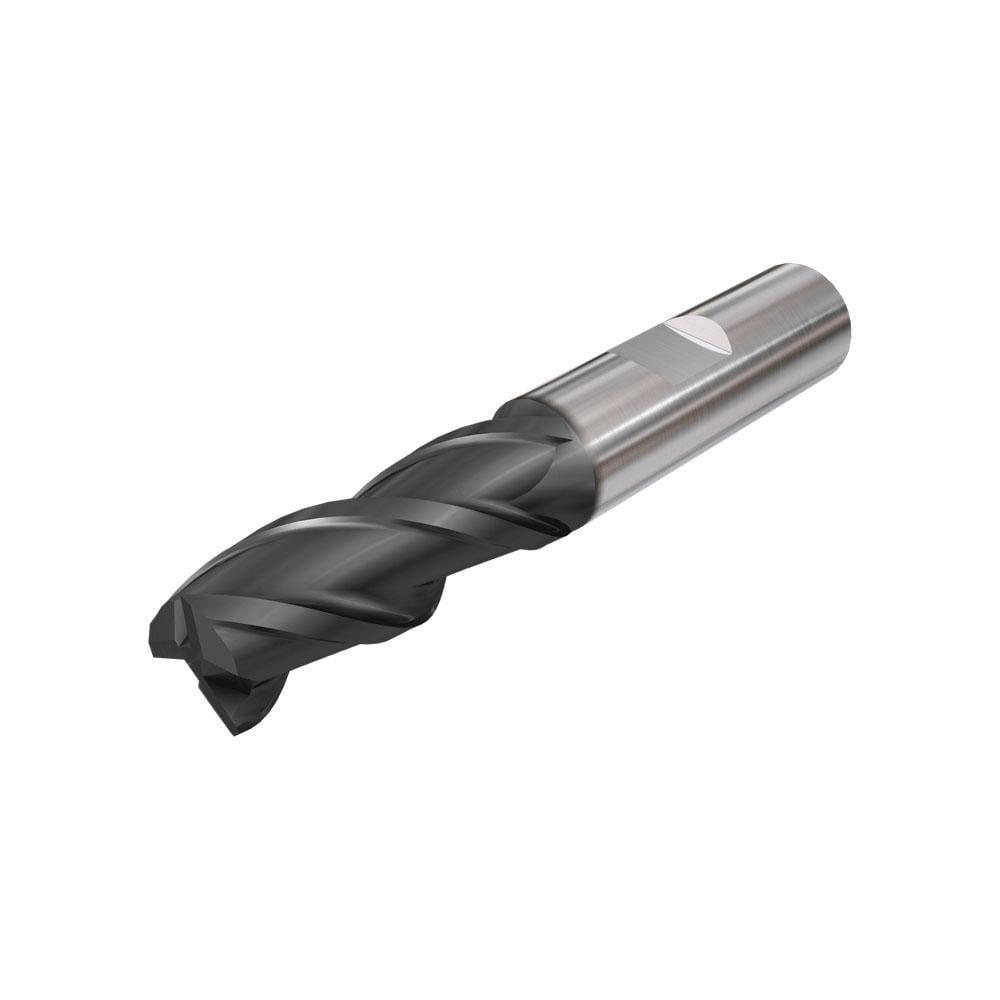

| Long Description | 3 flute, 38° helix, medium length, solid carbide endmills. |
| Diameter | 1.0000" (25.400 mm) (1) |
| Flute Length | 1.5000" (38.100 mm) (1 1/2) |
| Coating | AlTiN |
| APP1Name | Counter Boring |
| FamilyName | ECI-E-3 |
| COO | Korea |
| End/Corner Shape | Square End |
| Weight (OZ) | 24.12698 |
| Width (Inch) | 1.14 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
