Iscar
5620903
ECI-A-4 188-500-C188 IC900
Specifications
| Material | Carbide |
|---|---|

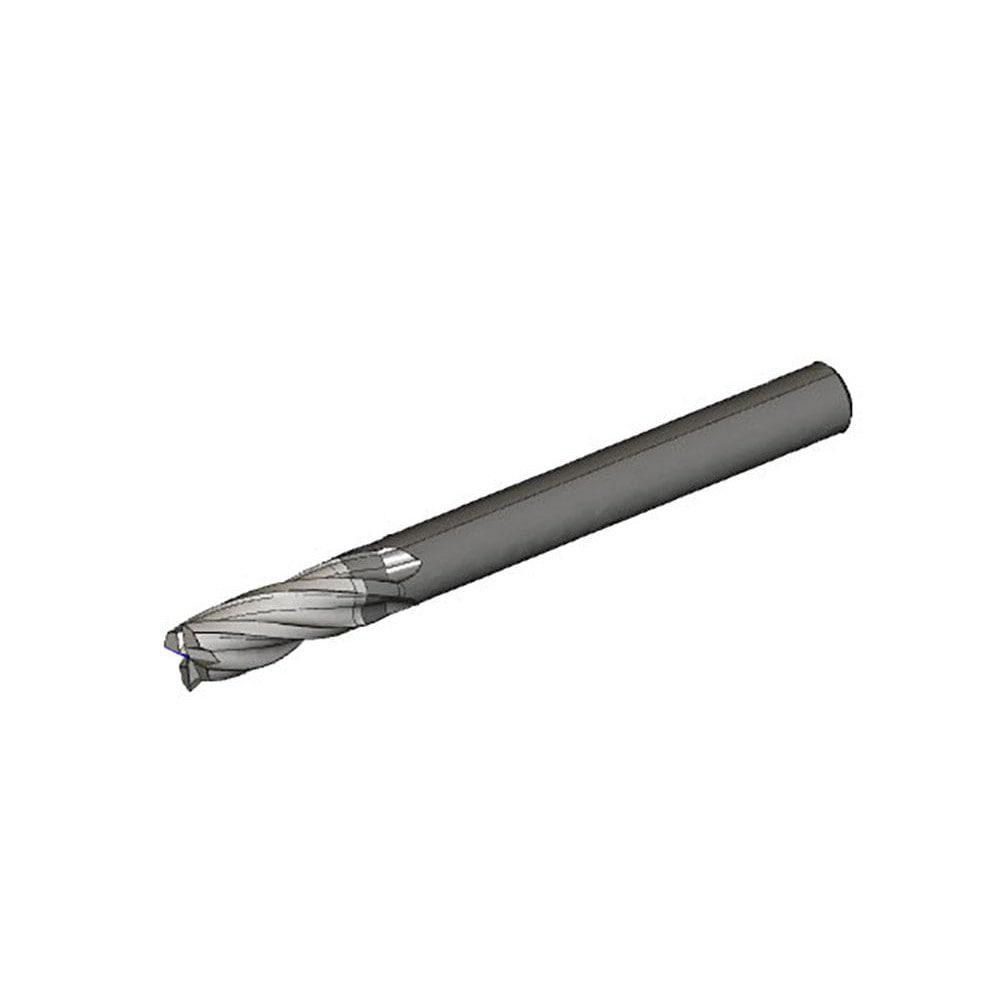

| Short Description | ISCAR 3/16x1/2x2 4F ALTIN CARB ENDMILL |
| Shank Diameter | 0.1880" |
| Overall Length | 2.0000" (50.800 mm) (2) |
| Long Description | 4 flute, 30° helix, medium length, solid carbide endmills. |
| Diameter | 0.1880" |
| Flute Length | 0.5000" (12.700 mm) (1/2 ) |
| Coating | AlTiN |
| APP1Name | Counter Boring |
| FamilyName | ECI-A-4 |
| COO | Israel |
| End/Corner Shape | Square End |
| Weight (OZ) | 0.5291 |
| Width (Inch) | 0.51 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
