Iscar
5620991
EBSI-A-4 250-313-C250 IC900
Specifications
| Material | Carbide |
|---|---|
| Short Description | ISCAR 1/4x5/16x2.1/2 4F ALTIN CARB STUB BALL MILL |
| Shank Diameter | 0.2500" (6.350 mm) (1/4 ) |
| Overall Length | 2.5000" (63.500 mm) (2 1/2) |

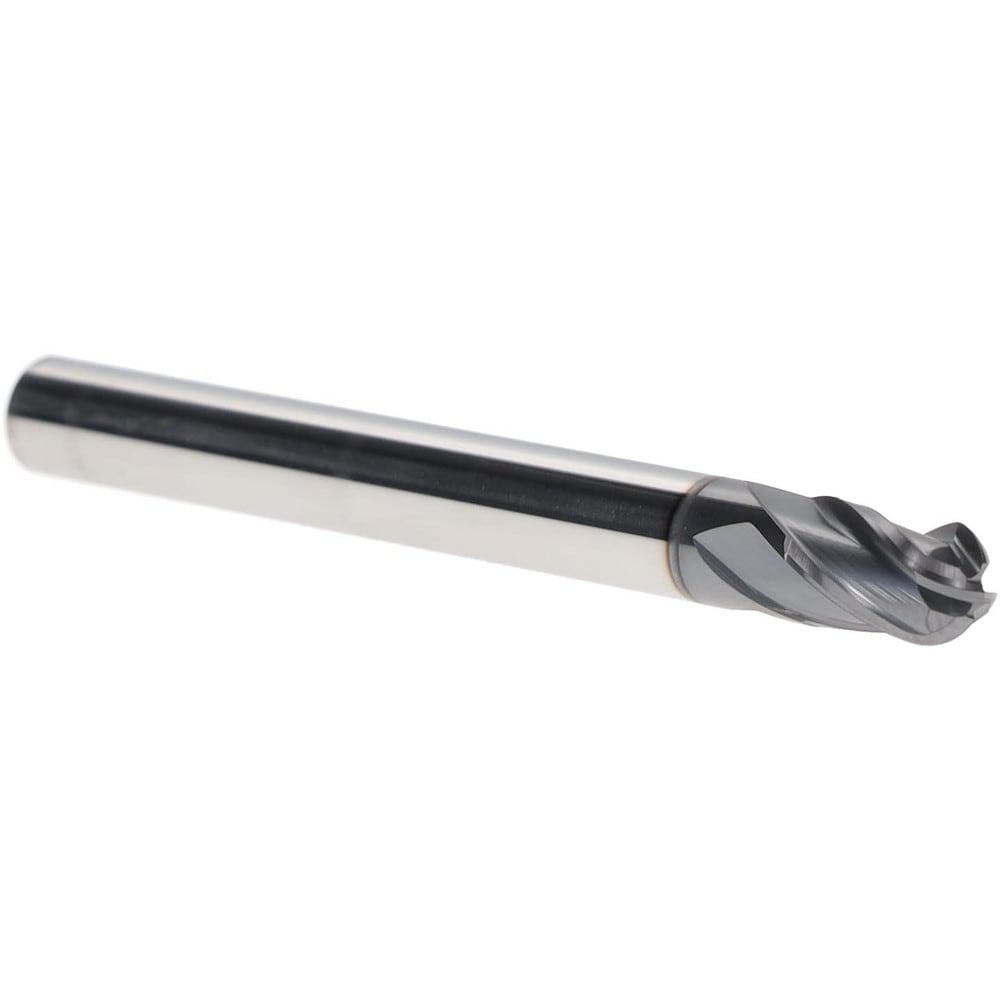

| Long Description | 4 flute, 30° helix, short solid carbide ball nose endmills. |
| Flute Length | 0.3130" (7.950 mm) |
| Diameter | 0.2500" (6.350 mm) (1/4 ) |
| APP1Name | Profiling |
| FamilyName | EBSI-A-4 |
| COO | Israel |
| Coating | AlTiN |
| End/Corner Shape | Ball End |
| Weight (OZ) | 1.097 |
| Width (Inch) | 0 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
