Iscar
5622869

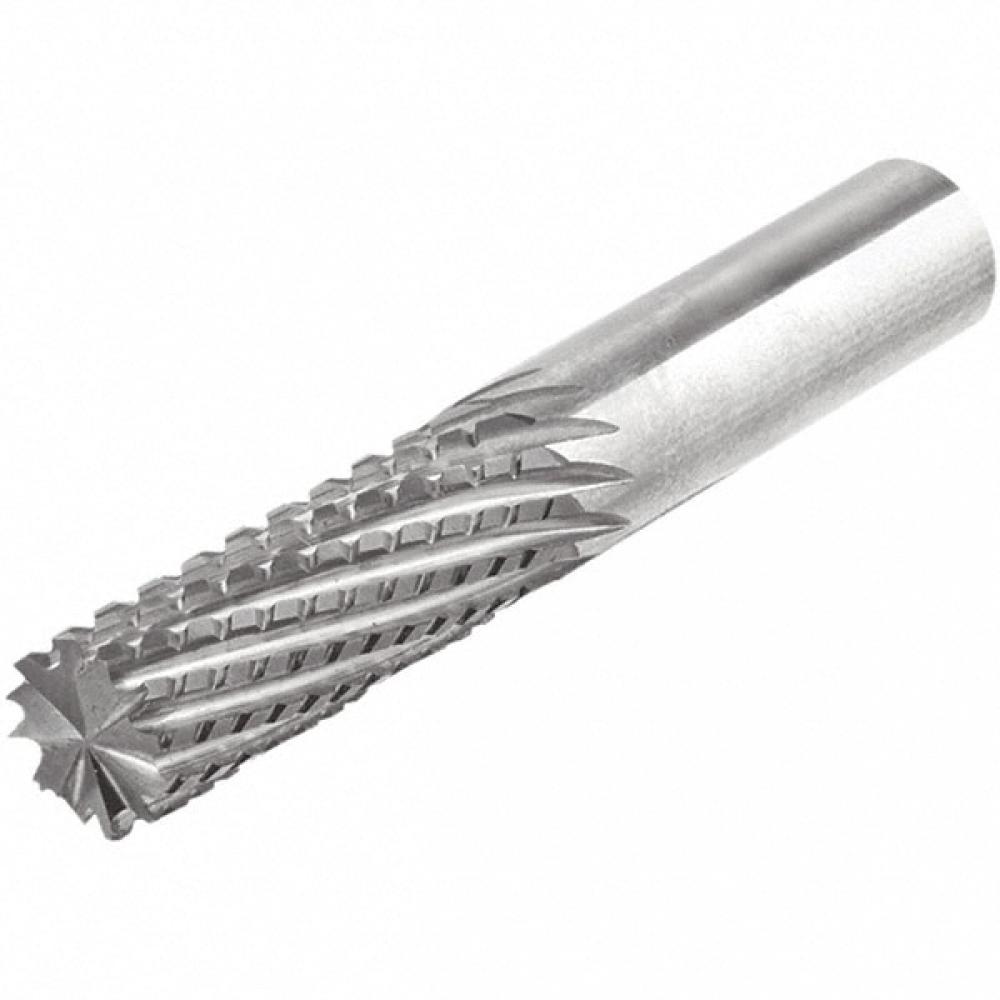

EPNI-F12 500-1.0C500F3.0 IC02
Specifications
| Material | Carbide |
|---|---|
| Short Description | EPNI-F12-500-1.0C500F3.0 ISCAR |
| Shank Diameter | 0.5000" (12.700 mm) (1/2 ) |
| Overall Length | 3.0000" (76.200 mm) (3) |
| Long Description | Solid endmills with a special edge configuration for machining different composite materials. |
| Diameter | 0.5000" (12.700 mm) (1/2 ) |
| Flute Length | 1.0000" (25.400 mm) (1) |
| Coating | Uncoated |
| APP1Name | Edging |
| FamilyName | EPNI-F |
| COO | Israel |
| End/Corner Shape | Square End |
| Weight (OZ) | 4.72663 |
| Width (Inch) | 0.43 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
