Iscar
5623430

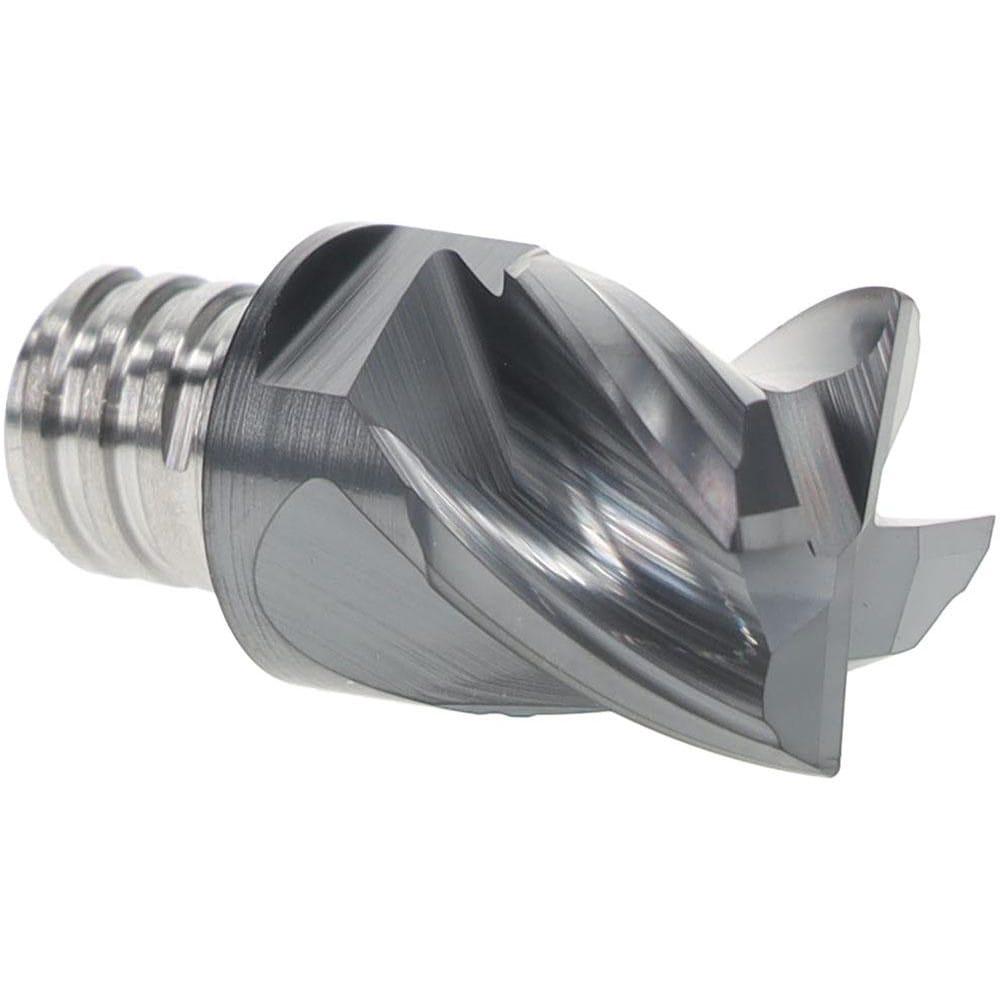

MM EC500E37R15CF-4T08 IC908
Specifications
| Material | Carbide |
|---|---|
| Number Of Flutes | 4 |
| Long Description | MULTI-MASTER interchangeable solid carbide heads with 38° helix and variable pitch for roughing and finishing operations.High material removal rates CHATTERFREE. Used for machining alloyed and stainless steel and exotic materials. |
| Short Description | MM-EC500E37R15CF-4T08-908 ISCAR MM CHATTER FREE INSERTS |
| APP1Name | Drill Mill |
| FamilyName | MM EC-CF |
| Cutter Diameter | 0.5000 |
| COO | Israel |
| Coating | TiAlN |
| Weight (OZ) | 1.09347 |
| Width (Inch) | 2.17 |
| Corner Radius | 0.015 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
