Iscar
5667122
MTECS 08078C31 1.5ISO IC908
Specifications
| Flute Type | Helical |
|---|---|
| Short Description | ISCAR MTECS 08078C31 1.5ISO 908 |
| Material | Carbide |
| Coating | TiAlN |
| COO | Israel |
| Cutting Edge Material | Carbide |

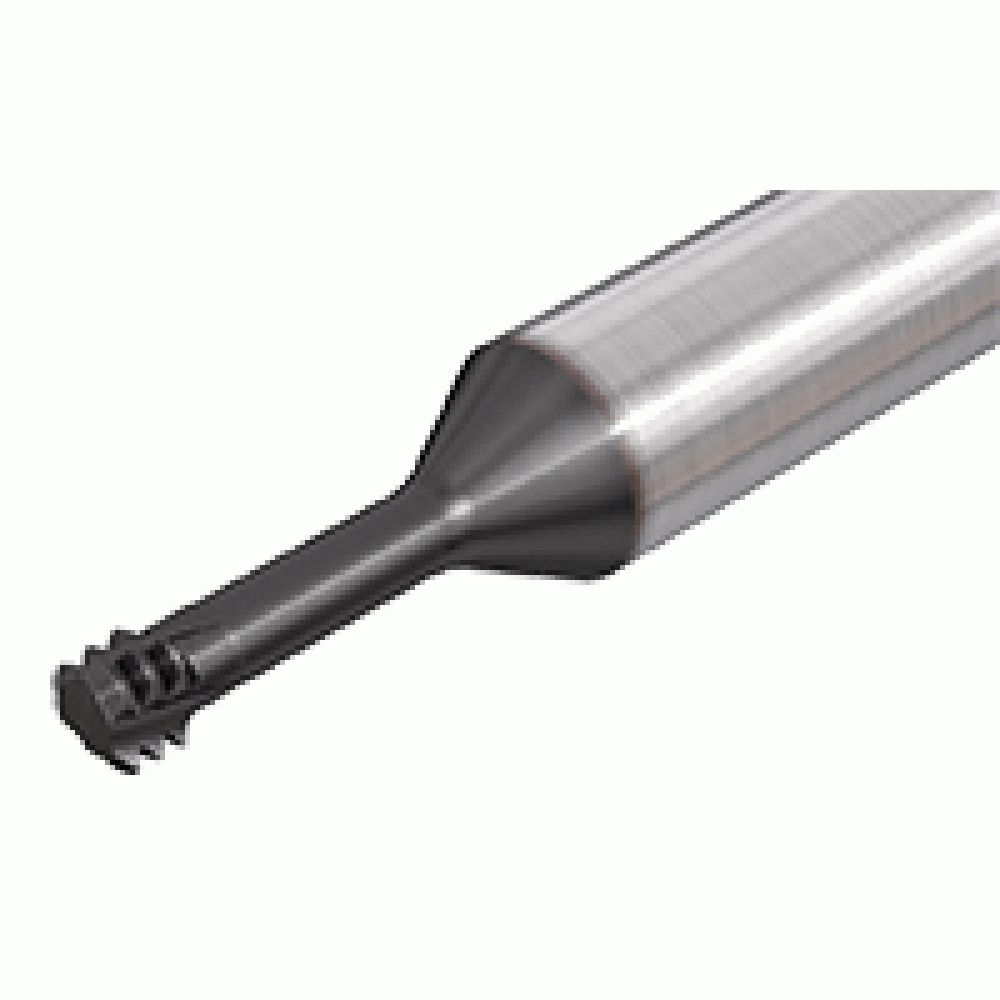

| Long Description | Small diameter, solid carbide internal ISO profile threading mills. Designed for high cutting speeds, short cycle time and low cutting forces. Short threading contact for accurate and parallel thread. |
| Thread Size | M10 X 1.50 |
| Shank Diameter | 0.3150" (8.000 mm) |
| Shank Type | Cylindrical |
| APP1Name | Internal Thread Milling |
| Overall Length | 2.5197" (64.000 mm) |
| FamilyName | MTECS-ISO |
| Cutter Diameter | 0.3071" (7.800 mm) |
| Weight (OZ) | 1.0582 |
| Width (Inch) | 0.43 |
| Measurement Type | Metric |
