Iscar
5668659
SD D32-M2.00-NO4-SP15 IC908
Specifications

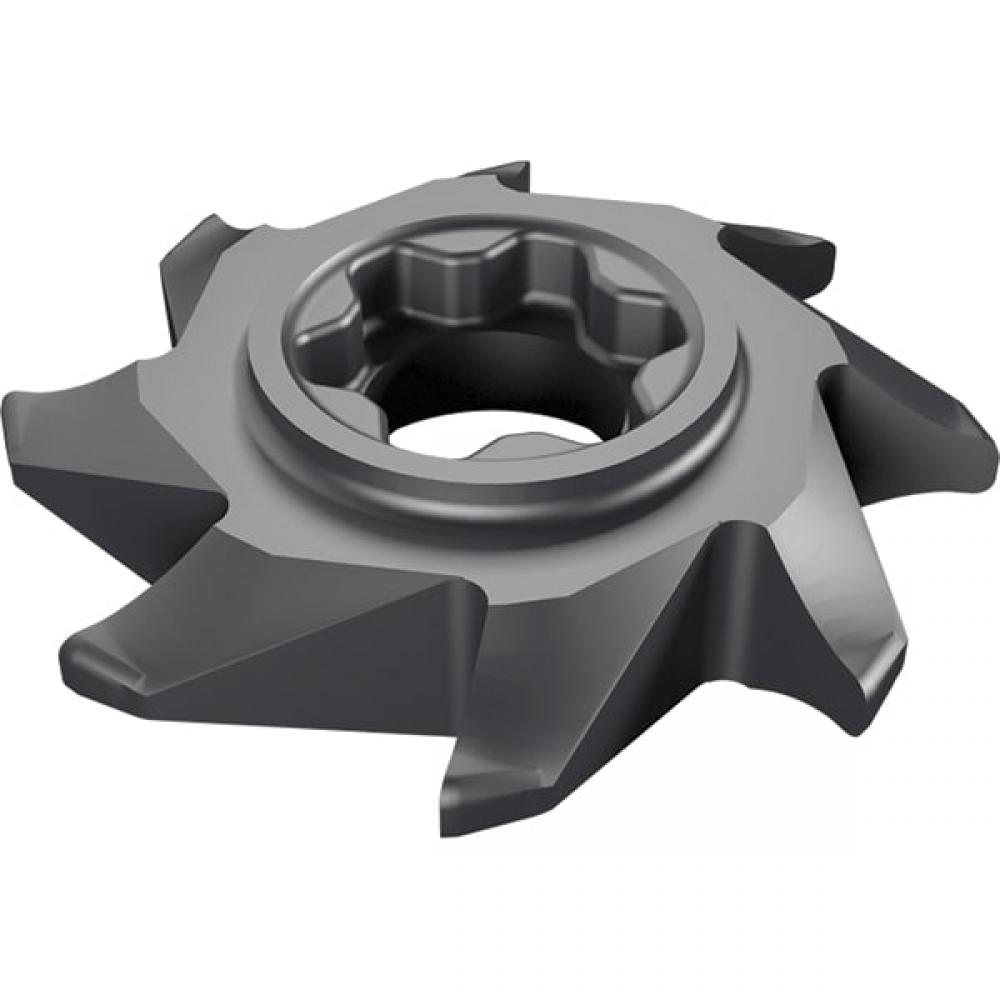

| Long Description | Interchangeable solid carbide milling heads for involute gear profile milling according to DIN 3972 basic profile ll, with module range 1-2.25 mm. Tolerances according to DIN 3962 class-10. Pressure angle 20° |
|---|---|
| APP1Name | Gear tooth profile |
| FamilyName | SD-M-N-SP |
| COO | Israel |
| Coating | TiAlN |
| Weight (OZ) | 1.7284 |
| Width (Inch) | 2.17 |
| Cutting Edge Material | Carbide |
| Measurement Type | Metric |
