Iscar
5696376
LNKX 1506PNTN IC5100
Specifications
| Material | Carbide |
|---|---|
| Coating/Finish | TiCN+Al2O3 |
| Type | T Slotting |
| Short Description | ISCAR LNKX-1506PNTN-IC5100 |

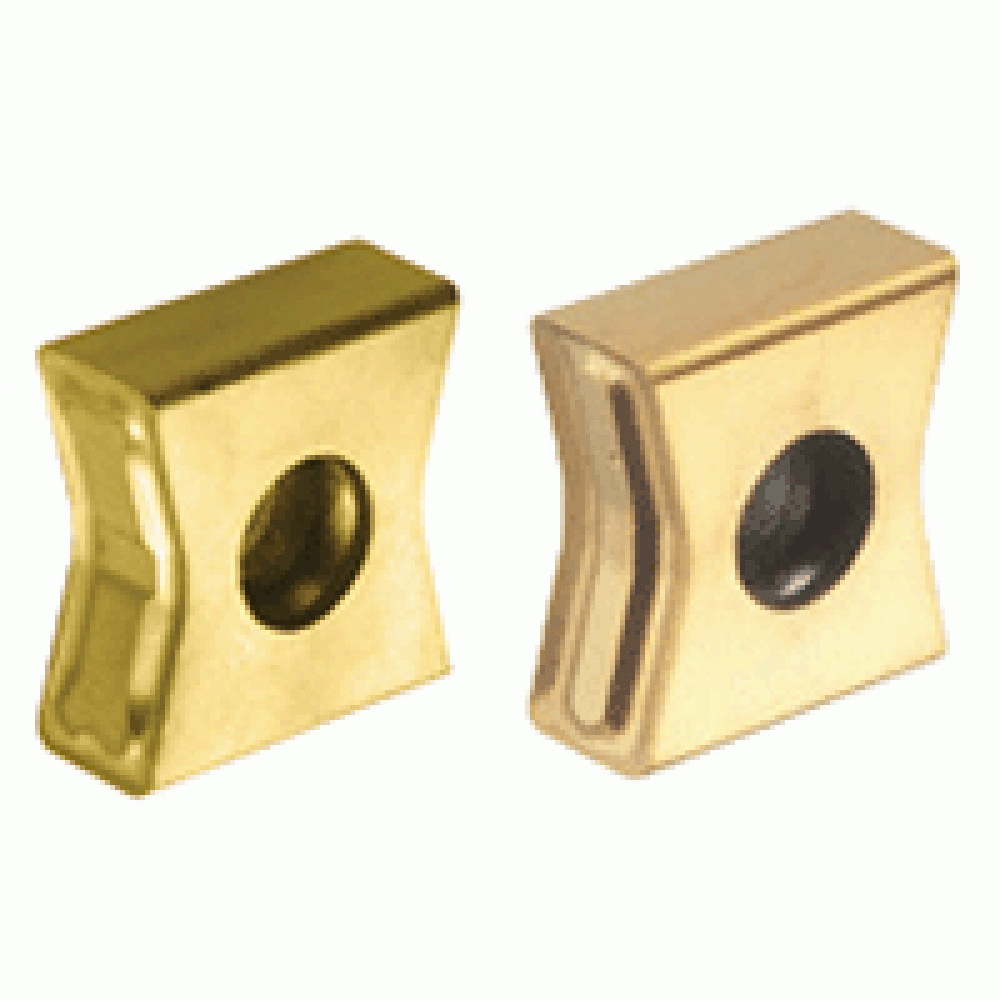

| Long Description | Tangentially clamped insert with 4 L.H. and 4 R.H. cutting edges. Reinforced negative land for unfavorable conditions. Enables high feed rates on grey and nodular cast iron. |
| Shape | Tangential |
| Style | LNKX |
| Unit Of Measure | Imperial |
| Country of Origin | Israel |
| Base Item Number | Milling Indexable Inserts |
| Family Short Description | Tangentially Clamped Inserts with a Reinforced Negative Land for Unfavorable Conditions |
| Height | 0.55 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.53 OZ |
| Width | 2.20 Inch |
| APP1Name | T Slotting |
| FamilyName | LNKX/LNMT 1506PNTN/PN-N MM |
| Weight (OZ) | 0.53263 |
| Width (Inch) | 2.2 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
