Iscar
5700407

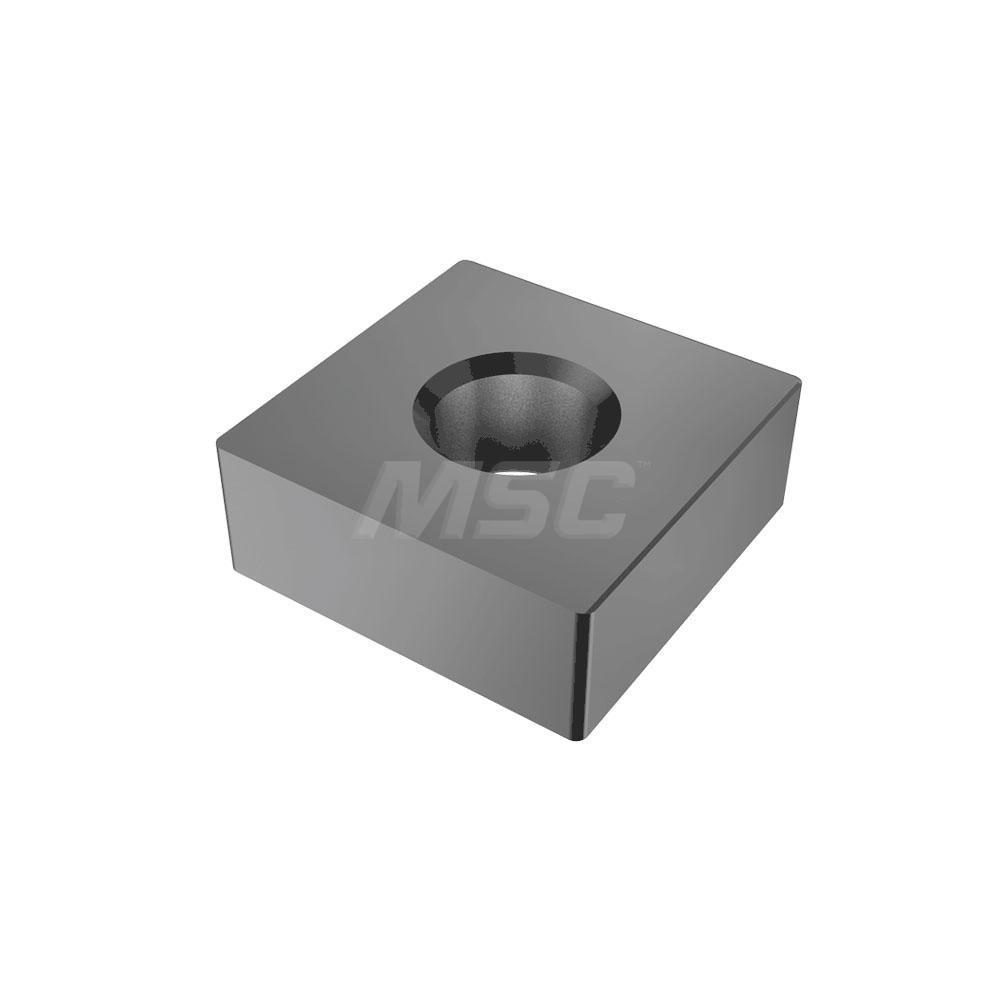

SNGA 432T IN22
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Material | Ceramic |
| Size | 0.5 |
| Included Angle | 90 degrees |
| Corner Radius (Inch) | 0.03 |
| Style | SNGA |
| Thickness (Inch) | 0.19 |
| Short Description | SNGA-432T-IN22 ISCAR CERAMIC INSERTS |
| Long Description | Negative square double-sided ceramic inserts for machining cast iron and hardened steel |
| Unit Of Measure | Imperial |
| Shape | Square |
| Maximum Depth of Cut (Decimal) | 0.14 |
| Minimum Feed (Decimal) | 0.002 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Hardened Materials+Cast Iron |
| Clearance Angle | Negative |
| Machining Application | Finishing-Semi Roughing |
| Country of Origin | Korea |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0310 |
| Family Short Description | Negative Square Double-Sided Ceramic Inserts for Machining Cast Iron and Hardened Steel |
| Height | 0.47 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.14 OZ |
| Width | 1.69 Inch |
| Insert Coating | Uncoated |
| APP1Name | Ext. 90° Square 45° Approach |
| FamilyName | SNGA (CER) |
| Max. Depth Of Cut | 0.1380 |
| Insert Style | SNGA |
| Insert Shape | 90° Square |
| Insert Thickness | 0.1870 |
| Weight (OZ) | 0.14462 |
| Width (Inch) | 1.69 |
| Cutting Edge Material | Ceramic |
| Measurement Type | Inch |
