Iscar
5700416

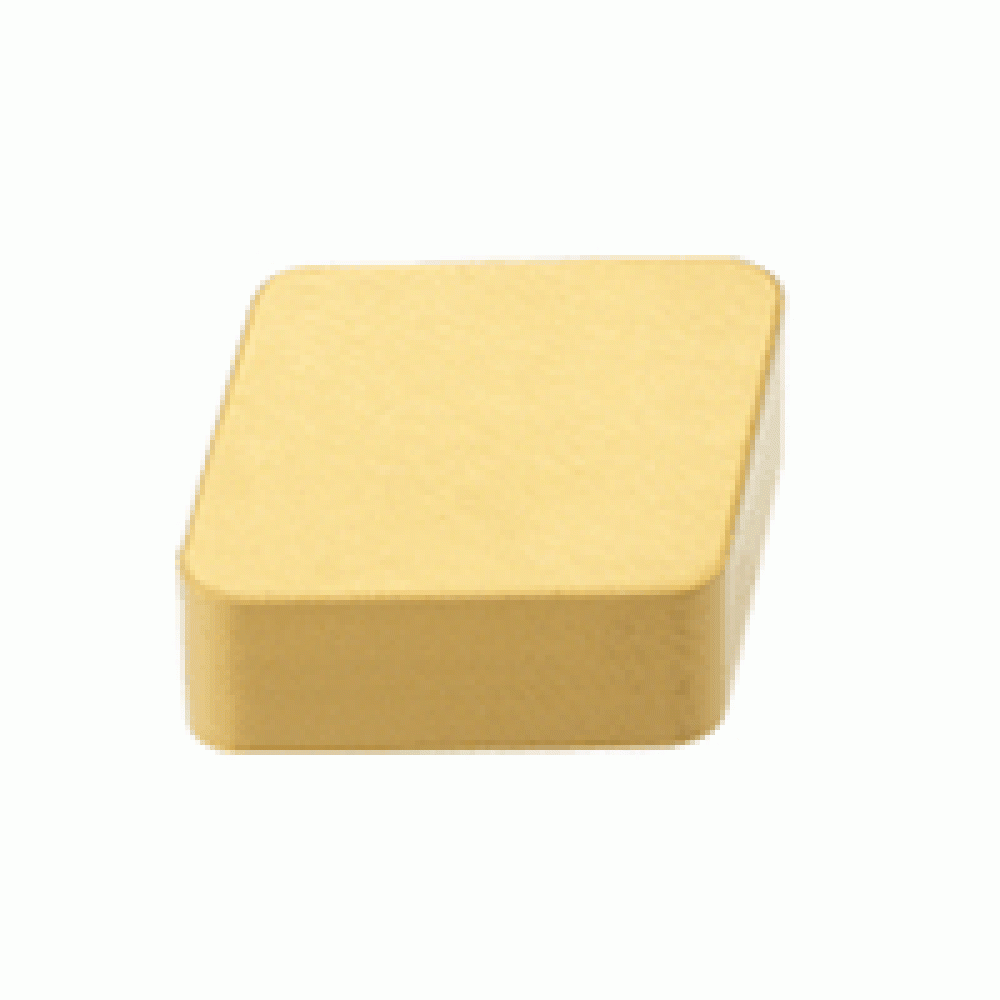

CNG 433T IN23
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Material | Ceramic |
| Size | 0.5 |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.05 |
| Style | CNG |
| Thickness (Inch) | 0.19 |
| Short Description | CNG-433T-IN23 ISCAR INSERT |
| Long Description | Negative 80° rhombic double-sided ceramic inserts for machining cast iron, hardened steel and heat-resistant alloys |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.51 |
| Minimum Depth of Cut (Decimal) | 0.04 |
| Maximum Depth of Cut (Decimal) | 0.16 |
| Minimum Feed (Decimal) | 0.0039 |
| Maximum Feed (Decimal) | 0.02 |
| Work Material | Hardened Materials+Cast Iron |
| Clearance Angle | Negative |
| Machining Application | Finishing-Semi Roughing |
| Country of Origin | Korea |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0470 |
| Family Short Description | Negative 80° Rhombic Double-Sided Ceramic Inserts for Machining Cast Iron, Hardened Steel and Heat-Resistant Alloys |
| Height | 0.47 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.26 OZ |
| Width | 1.69 Inch |
| Insert Coating | Uncoated |
| APP1Name | Ext. 80° Diamond 95° Approach |
| FamilyName | CNG (CER) |
| Max. Depth Of Cut | 0.1570 |
| Insert Style | CNG |
| Insert Shape | 80° Diamond |
| Insert Thickness | 0.1870 |
| Weight (OZ) | 0.26332 |
| Width (Inch) | 1.69 |
| Cutting Edge Material | Ceramic |
| Measurement Type | Inch |
