Iscar
5700444

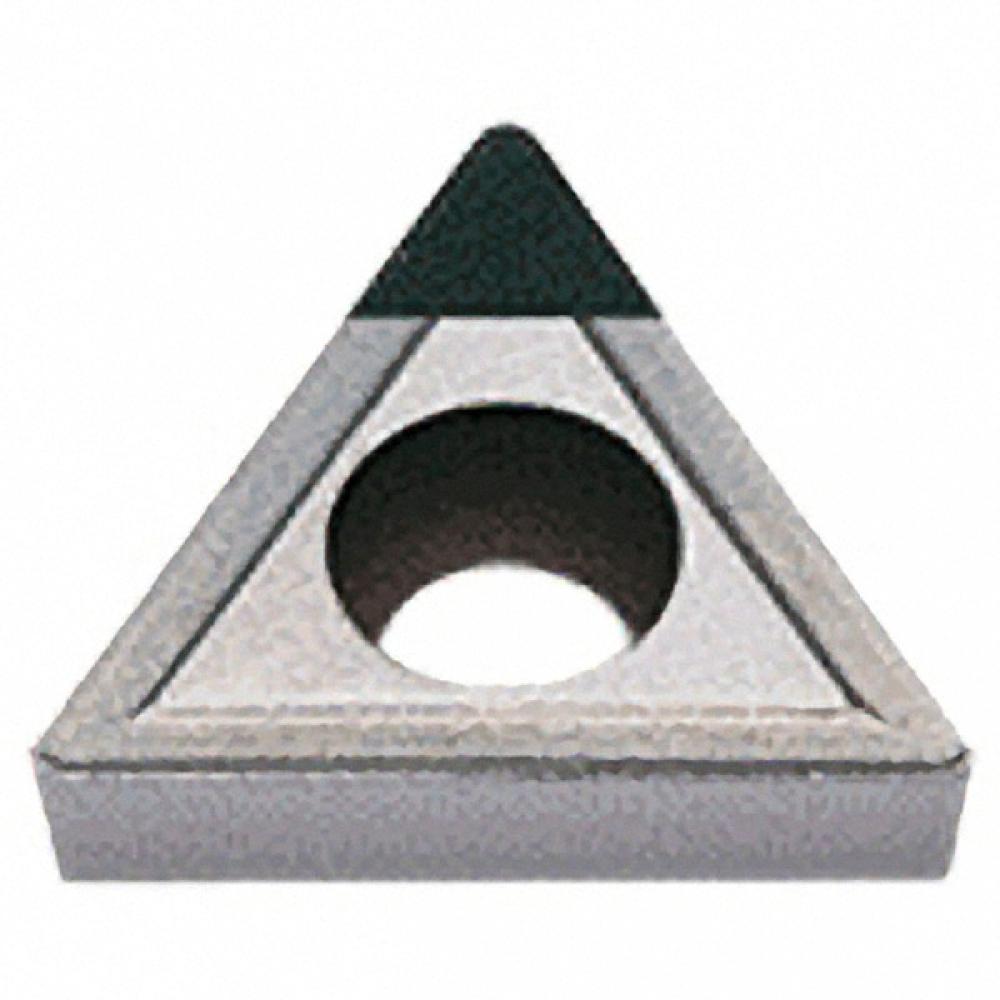

TCMT 2-1T IB50
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Material | PCBN |
| Size | 0.25 |
| Included Angle | 60 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | TCMT |
| Thickness (Inch) | 0.09 |
| Short Description | ISCAR TCMT-2-1T-IB50 |
| Long Description | Triangular positive inserts with a single CBN flat rake tip for machining hardened steel. |
| Unit Of Measure | Imperial |
| Shape | Triangle |
| Insert Edge Length (Decimal) | 0.43 |
| Maximum Depth of Cut (Decimal) | 0.02 |
| Minimum Feed (Decimal) | 0.002 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Hardened Materials+Cast Iron |
| Clearance Angle | 7 deg Positive |
| Machining Application | Fine Finishing |
| Country of Origin | Switzerland |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0160 |
| Family Short Description | Triangular Positive Inserts with a Single CBN Flat Rake Tip for Machining Hardened Steel |
| Height | 0.51 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.20 OZ |
| Width | 1.77 Inch |
| Insert Coating | Uncoated |
| APP1Name | Ext. 60° Triangle 91° Approach |
| FamilyName | TCMT (CBN) |
| Max. Depth Of Cut | 0.0200 |
| Insert Style | TCMT |
| Insert Shape | 60° Triangle |
| Insert Thickness | 0.0940 |
| Weight (OZ) | 0.20459 |
| Width (Inch) | 1.77 |
| Cutting Edge Material | PCBN |
| Measurement Type | Inch |
