Iscar
5700449

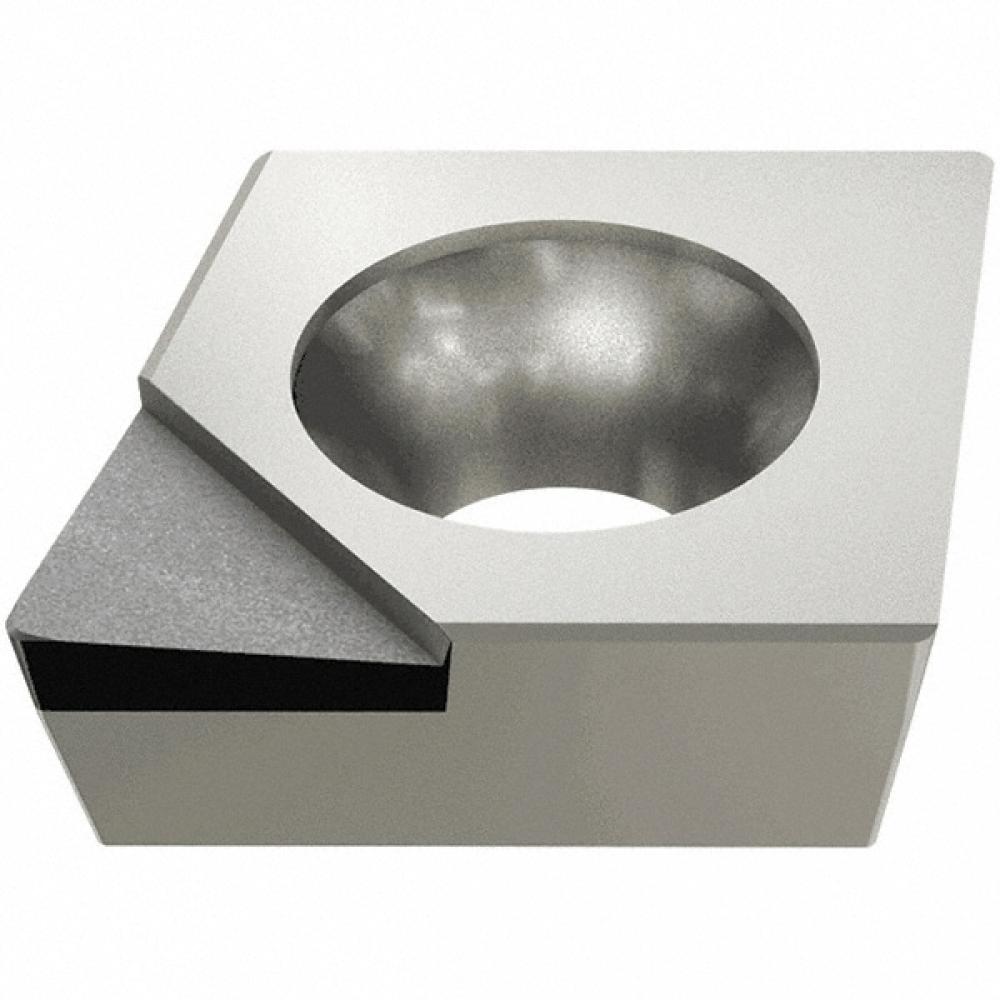

CCMT 2-1D ID5
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Material | PCD |
| Size | 0.25 |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | CCMT |
| Thickness (Inch) | 0.09 |
| Short Description | CCMT 2-1D ID5 ISCAR PCD INSERT |
| Long Description | 80° rhombic inserts with PCD single-top corner, brazed tip and a positive rake angle. Used for aluminum finishing |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.25 |
| Maximum Depth of Cut (Decimal) | 0.12 |
| Minimum Feed (Decimal) | 0.002 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Non Ferrous |
| Clearance Angle | 7 deg Positive |
| Machining Application | Fine Finishing-Medium |
| Country of Origin | Korea |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0160 |
| Family Short Description | Inserts with a Single PCD Top Corner Tip, 7° Clearance and Positive Rake Angle for Aluminum Finishing |
| Height | 0.79 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.25 OZ |
| Width | 1.77 Inch |
| Insert Coating | Uncoated |
| APP1Name | Ext. 80° Diamond 91° Approach |
| FamilyName | CCMT (PCD) |
| Max. Depth Of Cut | 0.1180 |
| Insert Style | CCMT |
| Insert Shape | 80° Diamond |
| Insert Thickness | 0.0940 |
| Weight (OZ) | 0.24691 |
| Width (Inch) | 1.77 |
| Cutting Edge Material | PCD |
| Measurement Type | Inch |
