Iscar
5700451

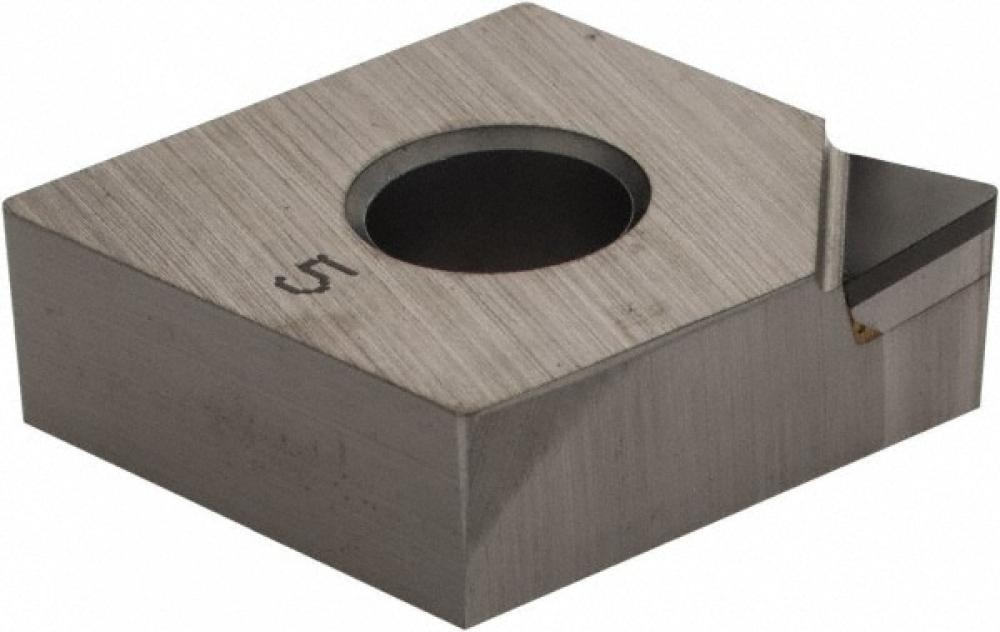

CNMA 431D ID5
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Material | PCD |
| Size | 0.5 |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | CNMA |
| Thickness (Inch) | 0.19 |
| Short Description | CNMA-431-ID5 ISCAR PCD INSERT |
| Long Description | 80° rhombic inserts with PCD single top corner brazed tip and positive rake angle, used for finishing aluminum. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.51 |
| Maximum Depth of Cut (Decimal) | 0.12 |
| Minimum Feed (Decimal) | 0.002 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Non Ferrous |
| Clearance Angle | Negative |
| Machining Application | Fine Finishing-Medium |
| Country of Origin | Korea |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0160 |
| Family Short Description | 80° Rhombic Inserts with a Single PCD Top Corner Tip and Positive Rake for Finishing Applications |
| Height | 0.63 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.56 OZ |
| Width | 1.65 Inch |
| Insert Coating | Uncoated |
| APP1Name | Ext. 80° Diamond 95° Approach |
| FamilyName | CNMA (PCD) |
| Max. Depth Of Cut | 0.1180 |
| Insert Style | CNMA |
| Insert Shape | 80° Diamond |
| Insert Thickness | 0.1870 |
| Weight (OZ) | 0.5582 |
| Width (Inch) | 1.65 |
| Cutting Edge Material | PCD |
| Measurement Type | Inch |
