Iscar
5700466

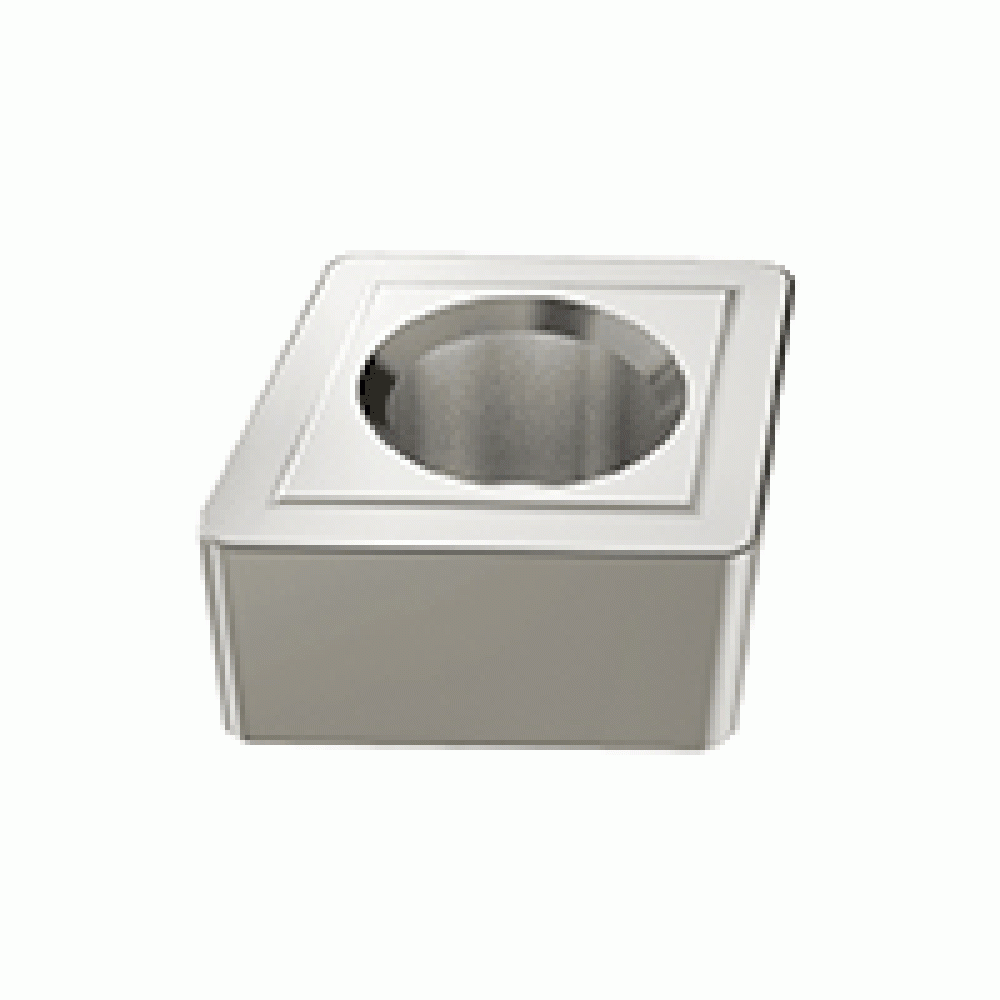

CNMG 432T IN23
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Material | Ceramic |
| Size | 0.5 |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.03 |
| Style | CNMG |
| Thickness (Inch) | 0.19 |
| Short Description | CNMG-432T-IN23 ISCAR |
| Long Description | 80° rhombic double-sided inserts with a T-Land for machining cast iron and hardened steel. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.51 |
| Work Material | Hardened Materials+Cast Iron |
| Clearance Angle | Negative |
| Machining Application | Finishing-Semi Roughing |
| Country of Origin | Korea |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0310 |
| Family Short Description | 80° Rhombic Double-Sided Inserts with a T-Land for Machining Cast Iron and Hardened Steel |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.14 OZ |
| Width | 1.57 Inch |
| Insert Coating | Uncoated |
| APP1Name | Ext. 100° Diamond 75° Approach |
| FamilyName | CNMG (CER) |
| Insert Style | CNMG |
| Insert Shape | 80° Diamond |
| Insert Thickness | 0.1870 |
| Weight (OZ) | 0.14462 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Ceramic |
| Measurement Type | Inch |
