Iscar
5700481

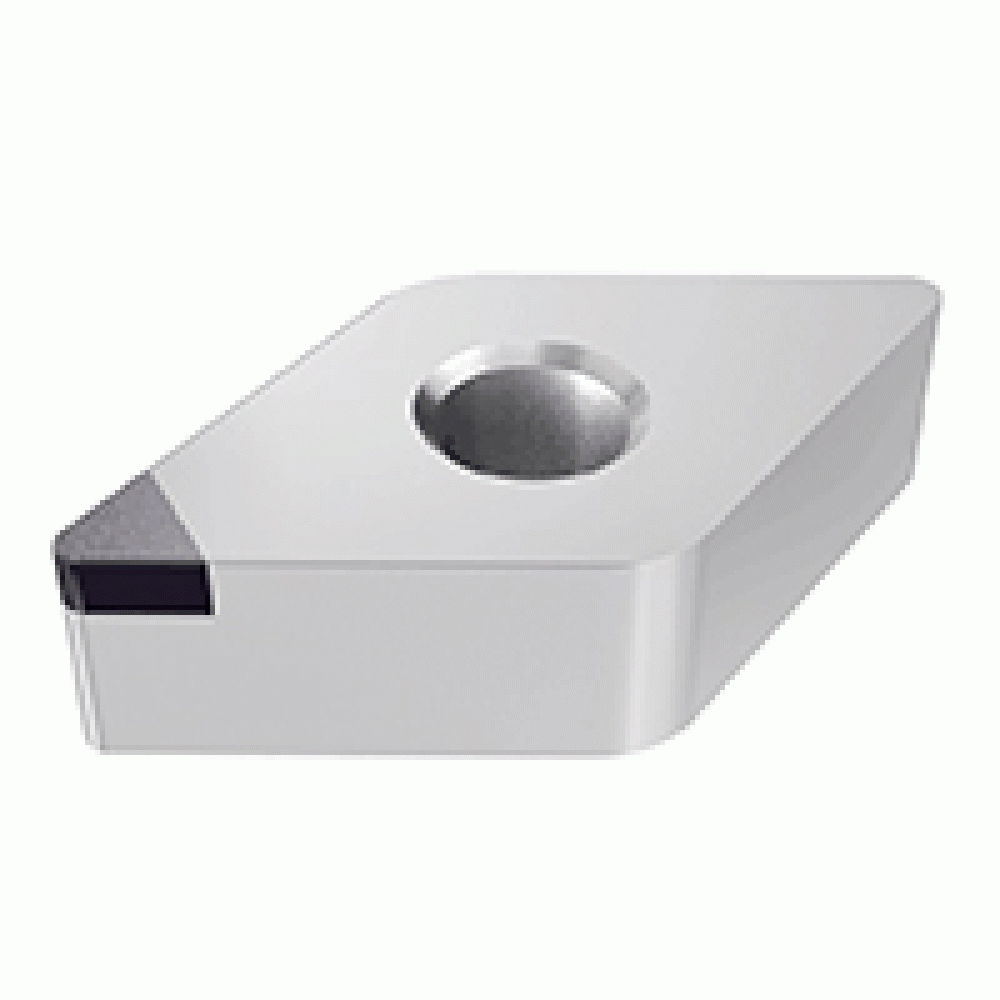

DNMA 433T IB55
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Material | PCBN |
| Size | 0.5 |
| Included Angle | 55 degrees |
| Corner Radius (Inch) | 0.05 |
| Style | DNMA |
| Thickness (Inch) | 0.19 |
| Short Description | ISCAR DNMA-433T-IB55 |
| Long Description | CBN inserts with a flat rake for machining hardened steel. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.61 |
| Maximum Depth of Cut (Decimal) | 0.02 |
| Minimum Feed (Decimal) | 0.002 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Hardened Materials+Cast Iron |
| Clearance Angle | Negative |
| Machining Application | Finishing-Semi Roughing |
| Country of Origin | Switzerland |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0470 |
| Family Short Description | CBN Inserts with a Flat Rake for Machining Hardened Steel |
| Height | 0.59 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.12 OZ |
| Width | 2.48 Inch |
| Insert Coating | Uncoated |
| APP1Name | Ext. 55° Diamond 62.5° Approac |
| FamilyName | DNMA (CBN) |
| Max. Depth Of Cut | 0.0200 |
| Insert Style | DNMA |
| Insert Shape | 55° Diamond |
| Insert Thickness | 0.1870 |
| Weight (OZ) | 0.11993 |
| Width (Inch) | 2.48 |
| Cutting Edge Material | PCBN |
| Measurement Type | Inch |
