Iscar
5700556
TPGX 730T IB50
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Material | PCBN |
| Size | 0.22 |
| Included Angle | 60 degrees |
| Corner Radius (Inch) | 0.01 |
| Style | TPGX |
| Thickness (Inch) | 0.09 |
| Short Description | ISCAR PTGX-730T IB50 INSERT |

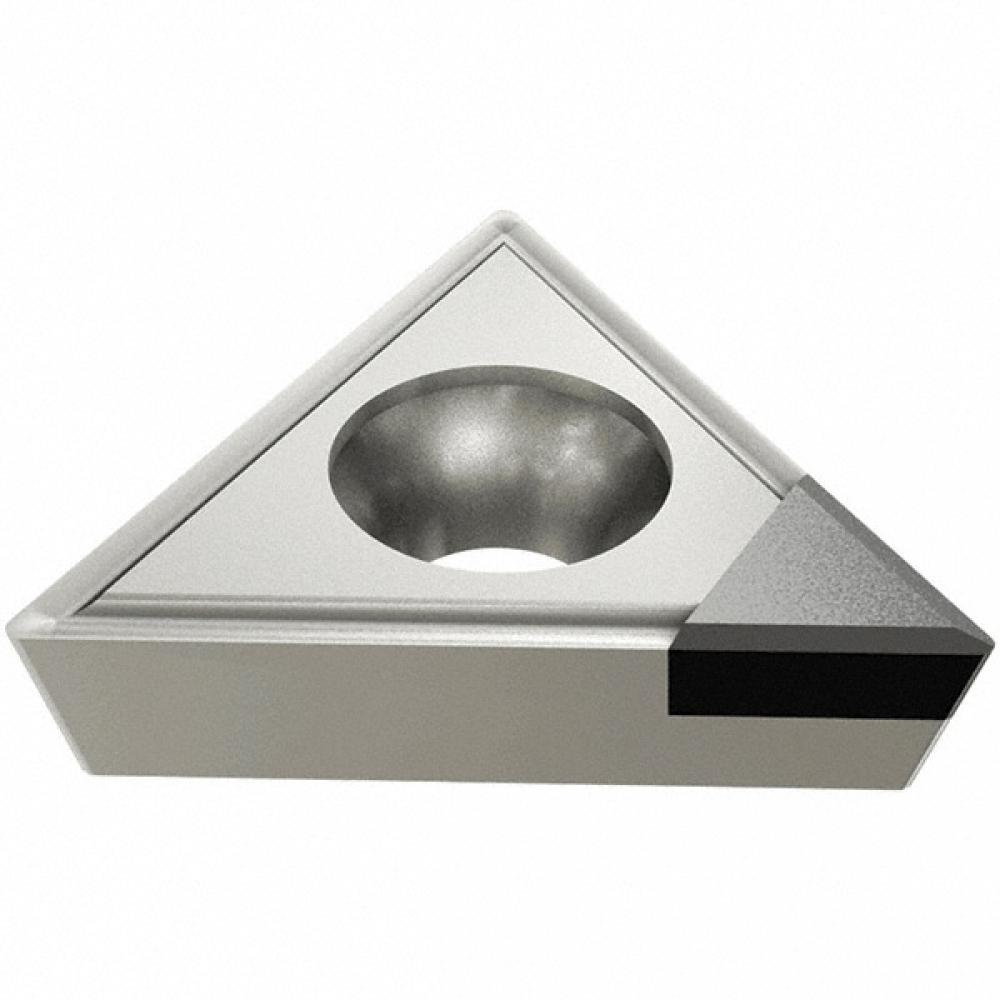

| Long Description | Triangular inserts with CBN single top corner brazed tip, 11° clearance and positive rake angle, for machining cast iron and hardened steel |
| Unit Of Measure | Imperial |
| Shape | Triangle |
| Insert Edge Length (Decimal) | 0.38 |
| Minimum Feed (Decimal) | 0.0012 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Hardened Materials+Cast Iron |
| Clearance Angle | 11 deg Positive |
| Machining Application | Fine Finishing |
| Country of Origin | Korea |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0080 |
| Family Short Description | Triangular Inserts with CBN Single Top Corner Brazed Tip, 11° Clearance for Machining Cast Iron and Hardened Steel |
| Height | 0.59 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.25 OZ |
| Width | 1.57 Inch |
| Insert Coating | Uncoated |
| APP1Name | Int. 60° Triangle 90° Approach |
| FamilyName | TPGX (CBN) |
| Max. Depth Of Cut | 0.0020 |
| Insert Style | TPGX |
| Insert Shape | 60° Triangle |
| Insert Thickness | 0.0940 |
| Weight (OZ) | 0.24691 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | PCBN |
| Measurement Type | Inch |
