Iscar
5700561

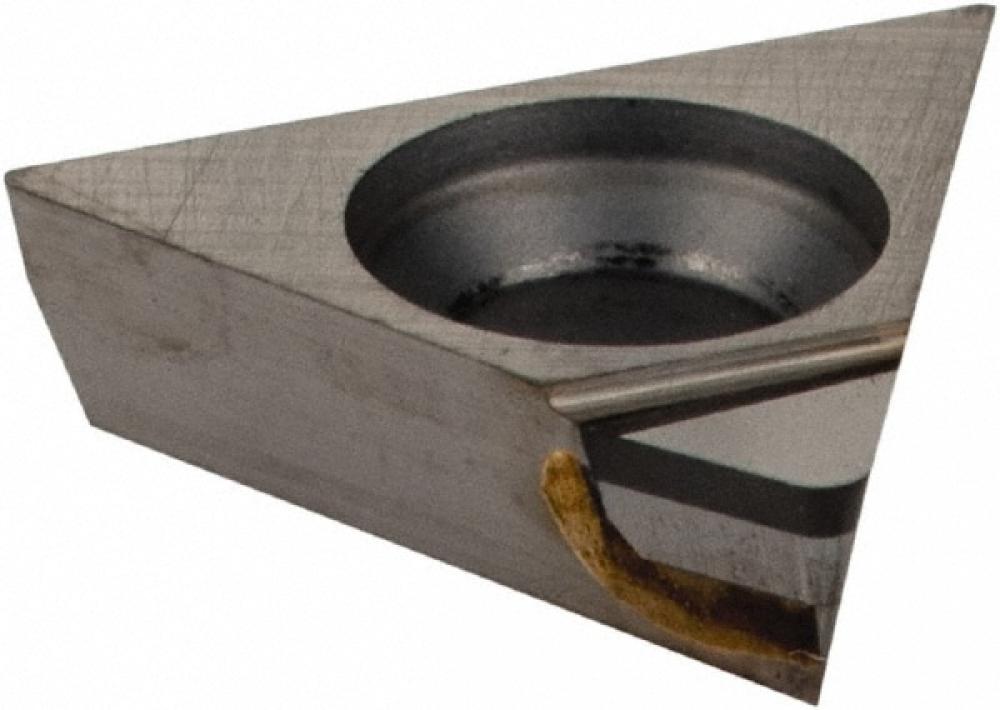

TPGX 731 ID5
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Material | PCD |
| Size | 0.22 |
| Included Angle | 60 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | TPGX |
| Thickness (Inch) | 0.09 |
| Short Description | ISCAR TPGX 731 ID5 INSERT |
| Long Description | Triangular inserts with PCD single top corner brazed tip, 11° clearance and positive rake angle, for finishing aluminum |
| Unit Of Measure | Imperial |
| Shape | Triangle |
| Insert Edge Length (Decimal) | 0.38 |
| Maximum Depth of Cut (Decimal) | 0.12 |
| Minimum Feed (Decimal) | 0.002 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Non Ferrous |
| Clearance Angle | 11 deg Positive |
| Machining Application | Fine Finishing-Medium |
| Country of Origin | Korea |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0160 |
| Family Short Description | Triangular Inserts with PCD Single Top Corner Brazed Tip, 11° Clearance and Positive Rake Angle for Finishing Aluminum |
| Height | 0.63 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.25 OZ |
| Width | 1.57 Inch |
| Insert Coating | Uncoated |
| APP1Name | Int. 60° Triangle 91° Approach |
| FamilyName | TPGX (PCD) |
| Max. Depth Of Cut | 0.1180 |
| Insert Style | TPGX |
| Insert Shape | 60° Triangle |
| Insert Thickness | 0.0940 |
| Weight (OZ) | 0.24691 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | PCD |
| Measurement Type | Inch |
