Iscar
5700645

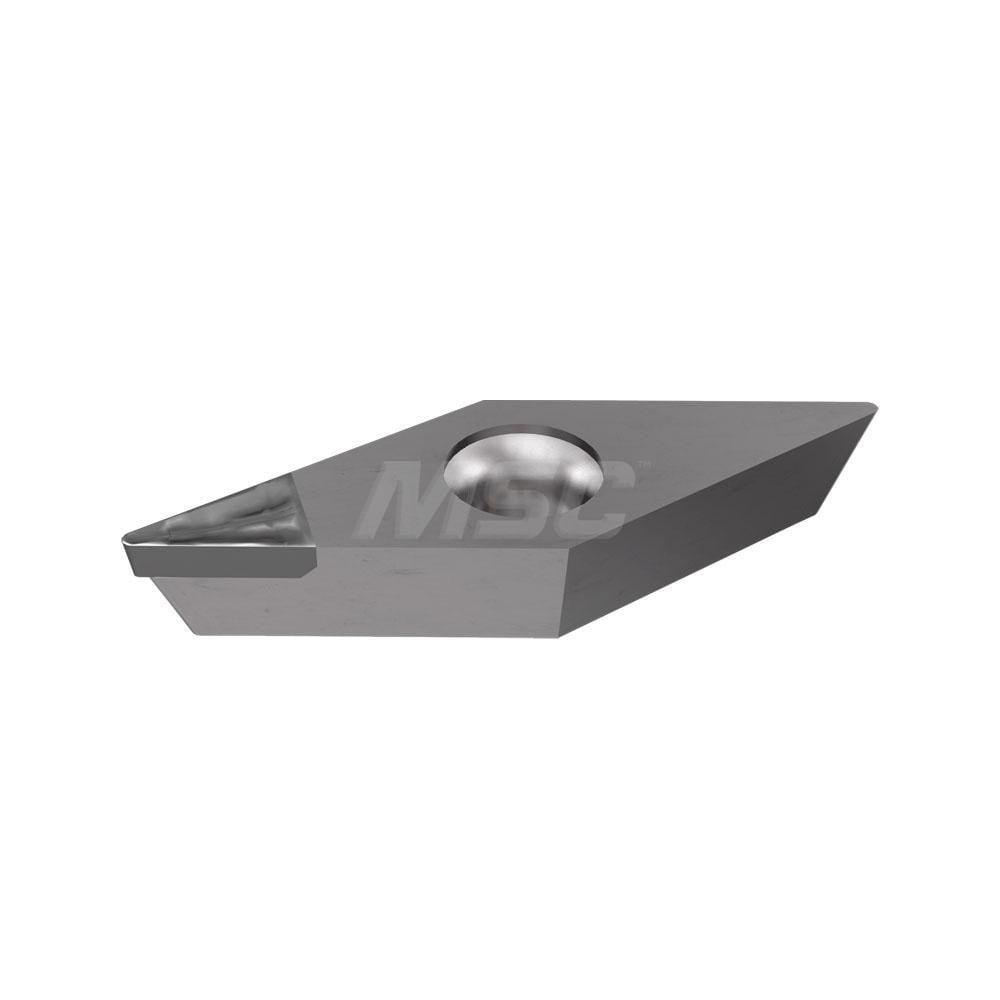

VCGT 333-DW ID5
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Material | PCD |
| Size | 0.38 |
| Included Angle | 35 degrees |
| Corner Radius (Inch) | 0.05 |
| Style | VCGT |
| Thickness (Inch) | 0.19 |
| Short Description | VCGT-333-DW-ID5 ISCAR TURNING INSERTS PCD |
| Long Description | 35° rhombic inserts with PCD single-top corner, brazed tip and a chipformer. Used for finishing aluminum and other nonferrous materials. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.65 |
| Maximum Depth of Cut (Decimal) | 0.12 |
| Minimum Feed (Decimal) | 0.002 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Non Ferrous |
| Clearance Angle | 7 deg Positive |
| Machining Application | Fine Finishing-Medium |
| Country of Origin | Germany |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0470 |
| Family Short Description | Inserts with 7° Clearance and a Single PCD Top Corner Tip Chipformer for Machining Aluminum |
| Height | 0.51 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.27 OZ |
| Width | 1.77 Inch |
| Insert Coating | Uncoated |
| APP1Name | Ext. 35° Diamond 112° Approach |
| FamilyName | VCGT-DW (PCD) |
| Max. Depth Of Cut | 0.1180 |
| Insert Style | VCGT |
| Insert Shape | 35° Diamond |
| Insert Thickness | 0.1870 |
| Weight (OZ) | 0.26808 |
| Width (Inch) | 1.77 |
| Cutting Edge Material | PCD |
| Measurement Type | Inch |
