Iscar
5700706

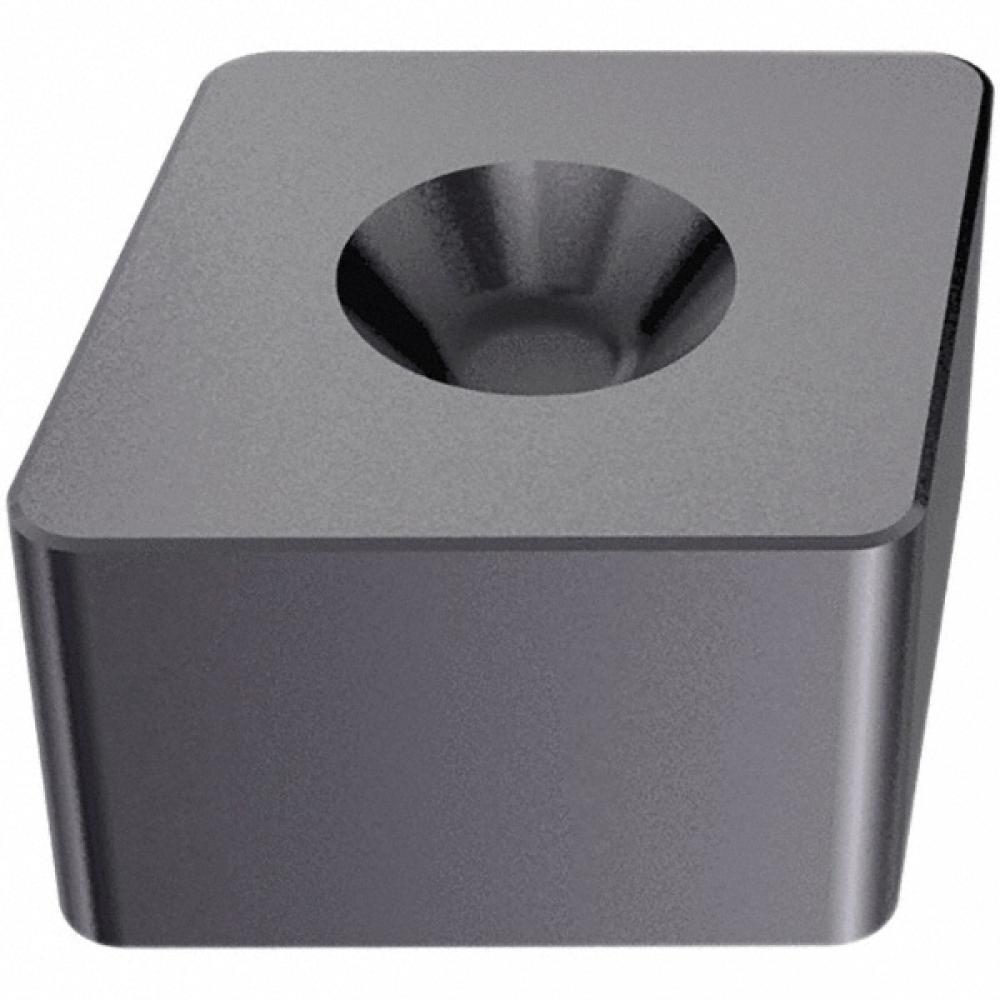

CNGX 454T IS6
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Material | Ceramic |
| Size | 0.5 |
| Included Angle | 80 degrees |
| Corner Radius (Inch) | 0.06 |
| Style | CNGX |
| Thickness (Inch) | 0.31 |
| Short Description | CNG-454T IS6 ISCAR CERMIC INSERT |
| Long Description | Negative 80° rhombic ground ceramic inserts for cast iron roughing |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.51 |
| Minimum Depth of Cut (Decimal) | 0.04 |
| Maximum Depth of Cut (Decimal) | 0.12 |
| Minimum Feed (Decimal) | 0.0028 |
| Maximum Feed (Decimal) | 0.02 |
| Work Material | Hi Temp+Cast Iron |
| Clearance Angle | Negative |
| Machining Application | Medium-Roughing |
| Country of Origin | Korea |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0630 |
| Family Short Description | Negative 80° Rhombic Ground Ceramic Inserts for Cast Iron Roughing |
| Height | 0.63 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.19 OZ |
| Width | 2.24 Inch |
| Insert Coating | Uncoated |
| APP1Name | Ext. 100° Diamond 75° Approach |
| FamilyName | CNGX (CER) |
| Max. Depth Of Cut | 0.1180 |
| Insert Style | CNGX |
| Insert Shape | 80° Diamond |
| Insert Thickness | 0.3130 |
| Weight (OZ) | 0.18695 |
| Width (Inch) | 2.24 |
| Cutting Edge Material | Ceramic |
| Measurement Type | Inch |
