Iscar
5700729

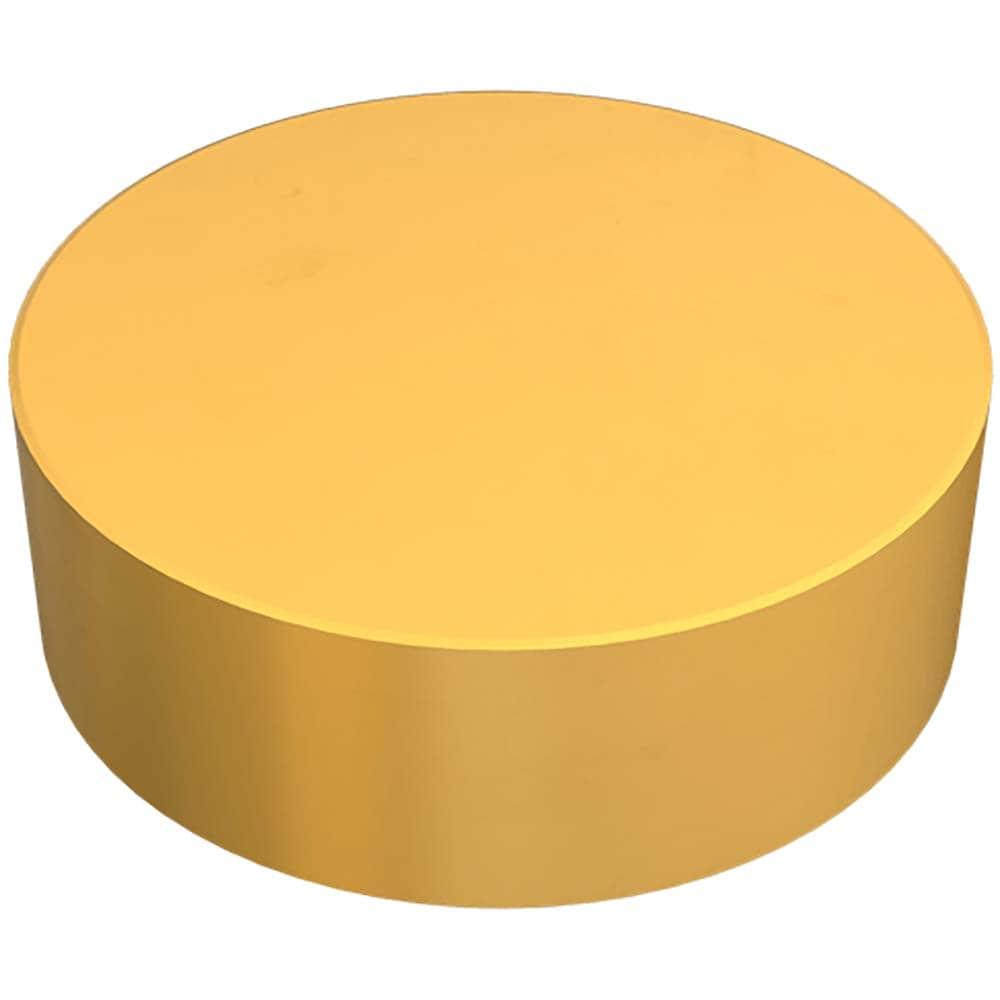

RNG 45T02020 IW7
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Material | Whiskers |
| Size | 0.5 |
| Style | RNG |
| Thickness (Inch) | 0.31 |
| Short Description | RNG-45T0220-IW7 ISCAR CERAMIC INSERTS |
| Long Description | Negative round double-sided ceramic inserts for machining cast iron, hardened steel, and heat-resistant alloys |
| Unit Of Measure | Imperial |
| Shape | Round |
| Maximum Depth of Cut (Decimal) | 0.08 |
| Minimum Feed (Decimal) | 0.0028 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Hi Temp+Hardened Materials |
| Clearance Angle | Negative |
| Machining Application | Finishing-Medium |
| Country of Origin | Korea |
| Base Item Number | Turning Indexable Inserts |
| Family Short Description | Negative Round Double-Sided Ceramic Inserts for Machining Cast Iron, Hardened Steel, and Heat-Resistant Alloys |
| Height | 0.59 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.18 OZ |
| Width | 2.13 Inch |
| Insert Coating | Uncoated |
| APP1Name | Ext. Round Face & Turn |
| FamilyName | RNG (CER) |
| Max. Depth Of Cut | 0.0790 |
| Insert Style | RNG |
| Insert Shape | Round |
| Insert Thickness | 0.3130 |
| Weight (OZ) | 0.18106 |
| Width (Inch) | 2.13 |
| Cutting Edge Material | Whiskers |
| Measurement Type | Inch |
