Iscar
5794883

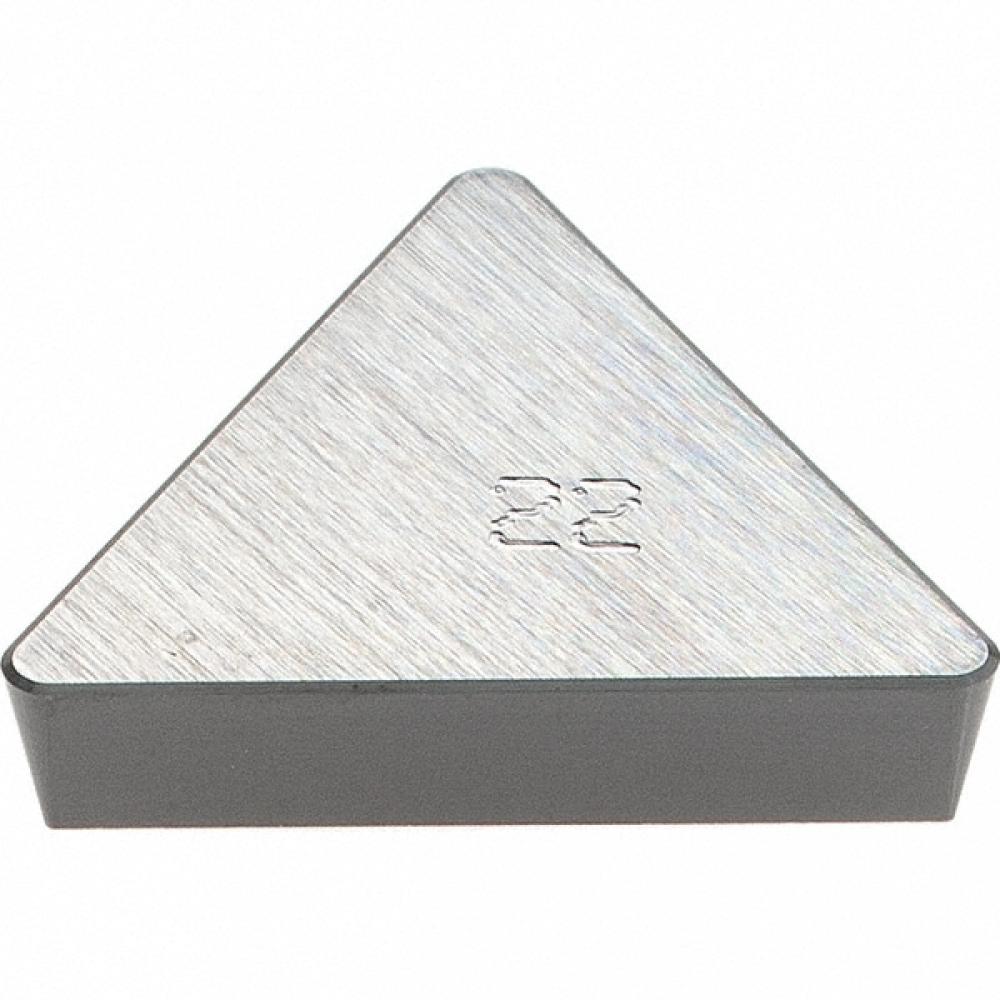

TPG 322T IN22
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Material | Ceramic |
| Size | 0.38 |
| Included Angle | 60 degrees |
| Corner Radius (Inch) | 0.03 |
| Style | TPG |
| Thickness (Inch) | 0.13 |
| Short Description | TPG-322T-IN22 ISCAR CERAMIC INSERTS |
| Long Description | Positive 60° triangular ceramic inserts for machining cast iron and hardened steel |
| Unit Of Measure | Imperial |
| Shape | Triangle |
| Insert Edge Length (Decimal) | 0.65 |
| Maximum Depth of Cut (Decimal) | 0.16 |
| Minimum Feed (Decimal) | 0.0028 |
| Maximum Feed (Decimal) | 0.02 |
| Work Material | Hardened Materials+Cast Iron |
| Clearance Angle | 11 deg Positive |
| Machining Application | Finishing-Semi Roughing |
| Country of Origin | Korea |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0310 |
| Family Short Description | Positive 60° Triangular Ceramic Inserts for Machining Cast Iron and Hardened Steel |
| Height | 0.59 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.09 OZ |
| Width | 1.61 Inch |
| Insert Coating | Uncoated |
| APP1Name | Ext. 60° Triangle 60° Approach |
| FamilyName | TPG (CER) |
| Max. Depth Of Cut | 0.1570 |
| Insert Style | TPG |
| Insert Shape | 60° Triangle |
| Insert Thickness | 0.1250 |
| Weight (OZ) | 0.09383 |
| Width (Inch) | 1.61 |
| Cutting Edge Material | Ceramic |
| Measurement Type | Inch |
